AD8279BRZ-RL - Analog Devices

Description: Low Power, Wide Supply Range,Low Cost Difference Amplifiers, G = ½, 2

Download AD8279BRZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

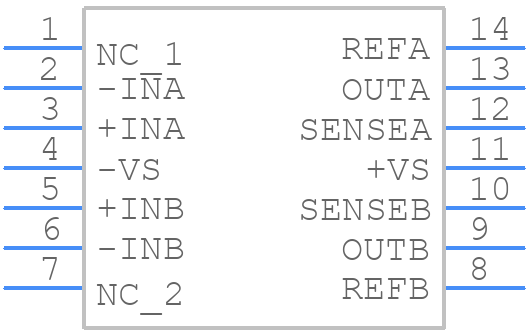

Symbol
AD8279BRZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8279BRZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
AD8279BRZ-RL - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

AD8279BRZ-RL Details

  • Manufacturer Part Number:

    AD8279BRZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:25.211

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.55 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.0012%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.4 V/us

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8279BRZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8279BRZ-RL involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or other sensitive circuits. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals near the analog input traces.
  • To optimize the performance of the AD8279BRZ-RL in a noisy environment, it's recommended to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to the analog ground, and using ferrite beads or RC filters to reduce electromagnetic interference (EMI). Additionally, using a low-pass filter at the input can help to reduce high-frequency noise.
  • The maximum input voltage that the AD8279BRZ-RL can handle is ±VCC + 0.3V, where VCC is the supply voltage. However, it's recommended to limit the input voltage to ±VCC to ensure reliable operation and to prevent damage to the device.
  • To ensure that the AD8279BRZ-RL is operating within its specified temperature range, it's recommended to use a thermally conductive material, such as a heat sink or thermal pad, to dissipate heat away from the device. Additionally, it's important to ensure that the device is not exposed to extreme temperatures during storage or operation.
  • The recommended power-up sequence for the AD8279BRZ-RL involves powering up the supply voltage (VCC) before applying the input signal. This ensures that the device is properly biased and configured before the input signal is applied.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8279BRZ-RL Overview

Use the download button to access the AD8279BRZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD827, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
