- Stock & Prices $ Price & Stock for AD8279BRZ
- Part Number AD8279BRZ
- Manufacturer Analog Devices
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-14N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8279BRZ Details
-
Manufacturer Part Number:
AD8279BRZ
-
Source Url Status Check Date:
2013-05-01 14:56:25.209
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, MS-012AB, SOIC-14
-
Pin Count:
14
-
Manufacturer Package Code:
R-14
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
AD8279BRZ Frequently Asked Questions (FAQs)
-
The AD8279BRZ is a high-frequency device, so it's essential to follow good high-frequency PCB design practices. Keep the input and output traces short and away from noise sources. Place the device close to the input signal source, and use a solid ground plane to minimize noise and radiation.
-
To optimize performance, ensure that the input signal is within the recommended range, and the output is properly terminated. Also, consider the power supply decoupling, and use a low-noise power supply. Additionally, consider the thermal management of the device, especially in high-temperature applications.
-
To minimize EMI and RFI, use a shielded enclosure, and ensure that the PCB layout is optimized for minimal radiation. Use a common-mode choke or ferrite beads on the input and output lines to reduce emissions. Also, consider using a low-pass filter or a shielded cable to reduce radiation.
-
To troubleshoot issues, start by verifying the power supply and input signal integrity. Check for proper termination and decoupling. Use an oscilloscope to inspect the input and output waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
The AD8279BRZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to reduce thermal resistance. Avoid blocking airflow or using a sealed enclosure that can trap heat.
Trust Checks
System Verified
AD8279BRZ Overview

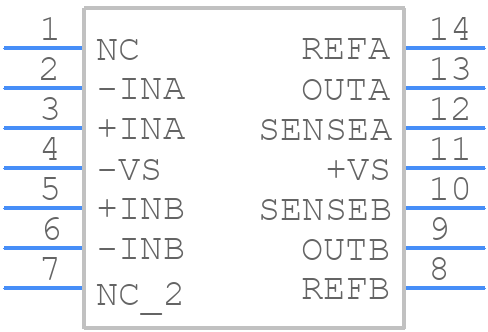

Use the download button to access the AD8279BRZ schematic symbol, PCB footprint, and 3D model.
