AD8293G160ARJZ-RL - Analog Devices

Description: Instrumentation Amplifiers Gain=160 R-R Zero Drift In Amp

Download AD8293G160ARJZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

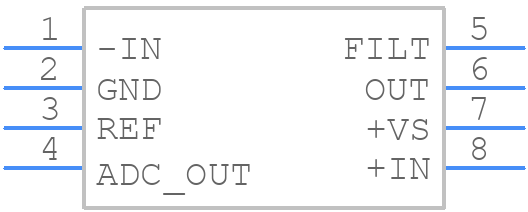

Symbol
AD8293G160ARJZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8293G160ARJZ-RL - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)--
click to zoom
3D Models
AD8293G160ARJZ-RL - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)--
click to zoom

AD8293G160ARJZ-RL Details

  • Manufacturer Part Number:

    AD8293G160ARJZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bandwidth (3dB)-Nom:

    500 MHz

  • Common-mode Reject Ratio-Min:

    94 dB

  • Input Offset Current-Max (IIO):

    0.004 µA

  • Input Offset Voltage-Max:

    50 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.03%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD8293G160ARJZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8293G160ARJZ-RL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and ensure good thermal management.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements specified in the datasheet. Additionally, ensure that the input common-mode voltage is within the specified range, and that the output is properly terminated to prevent oscillations.
  • The maximum power dissipation of the AD8293G160ARJZ-RL is typically around 1.4W. To prevent overheating, ensure good thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from other heat sources.
  • The AD8293G160ARJZ-RL is rated for operation up to 125°C. However, it's recommended to derate the device's performance and power dissipation at higher temperatures to ensure reliability and prevent thermal runaway. Consult the datasheet and application notes for more information.
  • To troubleshoot issues with the AD8293G160ARJZ-RL, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the device is properly biased and terminated. Use oscilloscopes and spectrum analyzers to measure the input and output signals, and consult the datasheet and application notes for troubleshooting guides.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8293G160ARJZ-RL Overview

Use the download button to access the AD8293G160ARJZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD829, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
