AD8293G160BRJZ-R7 - Analog Devices

Description: Instrumentation Amplifiers Gain=160 R-R Zero Drift In Amp

Download AD8293G160BRJZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

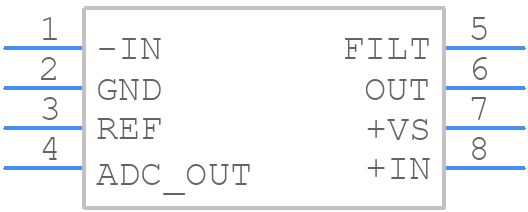

Symbol
AD8293G160BRJZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8293G160BRJZ-R7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8-Lead SOT-23 (RJ-8)
click to zoom
3D Models
AD8293G160BRJZ-R7 - Analog Devices - 3D model - SOT23 (8-Pin) - 8-Lead SOT-23 (RJ-8)
click to zoom

AD8293G160BRJZ-R7 Details

  • Manufacturer Part Number:

    AD8293G160BRJZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bandwidth (3dB)-Nom:

    500 MHz

  • Common-mode Reject Ratio-Min:

    106 dB

  • Input Offset Current-Max (IIO):

    0.004 µA

  • Input Offset Voltage-Max:

    20 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.009%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD8293G160BRJZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8293G160BRJZ-R7 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output is properly terminated, and the input is properly biased. Also, make sure to follow the recommended component values and PCB layout guidelines. Additionally, consider adding a capacitor in parallel with the output resistor to improve stability.
  • The maximum power dissipation of the AD8293G160BRJZ-R7 is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and airflow. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • The AD8293G160BRJZ-R7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the temperature coefficient of the device and ensure proper thermal management in high-temperature applications.
  • Common issues with the AD8293G160BRJZ-R7 include oscillations, distortion, and noise. To troubleshoot, check the PCB layout, power supply, and input/output connections. Ensure that the device is properly biased, and the output is properly terminated. Use an oscilloscope to visualize the output and identify any issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8293G160BRJZ-R7 Overview

Use the download button to access the AD8293G160BRJZ-R7 schematic symbol, PCB footprint, and 3D model.
