Part Image

AD8293G80BRJZ-R2 - Analog Devices

Description: AD8293G80BRJZ-R2 Analog Devices, Instrumentation Amplifier, 30μV Offset 500Hz, R-RO, 1.8 → 5.5 V, 8-Pin SOT-23

Download AD8293G80BRJZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

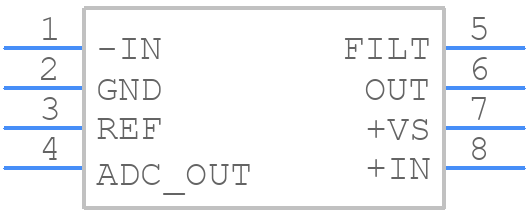

AD8293G80BRJZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8293G80BRJZ-R2 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - (RJ-8)_2020
click to zoom
3D Models
AD8293G80BRJZ-R2 - Analog Devices - 3D model - SOT23 (8-Pin) - (RJ-8)_2020
click to zoom

AD8293G80BRJZ-R2 Details

  • Manufacturer Part Number:

    AD8293G80BRJZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bandwidth (3dB)-Nom:

    500 MHz

  • Common-mode Reject Ratio-Min:

    106 dB

  • Input Offset Current-Max (IIO):

    0.004 µA

  • Input Offset Voltage-Max:

    30 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.009%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD8293G80BRJZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8293G80BRJZ-R2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR capacitor for decoupling, and keep the input and output impedance matched. Also, avoid capacitive loading on the output and ensure the feedback network is properly terminated.
  • The maximum power dissipation of the AD8293G80BRJZ-R2 is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. It's essential to ensure proper thermal management to prevent overheating.
  • The AD8293G80BRJZ-R2 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. It's essential to consult the datasheet and perform thermal analysis to ensure the device operates within its specifications.
  • To troubleshoot oscillations or instability issues, check the PCB layout, ensure proper decoupling, and verify the compensation network. Also, check for capacitive loading on the output, and ensure the input and output impedance are matched. If the issue persists, consult the datasheet and contact Analog Devices' support team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8293G80BRJZ-R2 Overview

Use the download button to access the AD8293G80BRJZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD829, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
