AD8293G80BRJZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8293G80BRJZ-R7 - Instrument Amplifier, 1 Amplifier, 50 µV, 1.8V to 5.5V, SOT-23

Download AD8293G80BRJZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

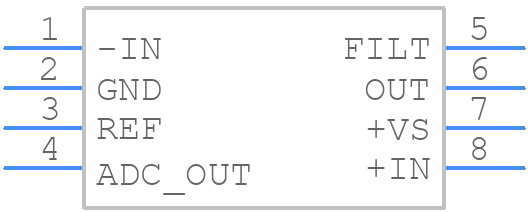

AD8293G80BRJZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8293G80BRJZ-R7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)--
click to zoom
3D Models
AD8293G80BRJZ-R7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)--
click to zoom

AD8293G80BRJZ-R7 Details

  • Manufacturer Part Number:

    AD8293G80BRJZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bandwidth (3dB)-Nom:

    500 MHz

  • Common-mode Reject Ratio-Min:

    106 dB

  • Input Offset Current-Max (IIO):

    0.004 µA

  • Input Offset Voltage-Max:

    30 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.009%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AD8293G80BRJZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8293G80BRJZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR capacitor for decoupling, and minimize the distance between the device and the decoupling capacitors. Also, ensure that the output is properly terminated and the input is properly biased.
  • The maximum power dissipation of the AD8293G80BRJZ-R7 is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and thermal management. It's essential to ensure proper thermal management to prevent overheating.
  • The AD8293G80BRJZ-R7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is operated within the recommended temperature range.
  • Common issues with the AD8293G80BRJZ-R7 include oscillations, instability, and distortion. To troubleshoot, check the PCB layout, decoupling, and compensation network. Ensure that the input and output are properly terminated, and the device is operated within the recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8293G80BRJZ-R7 Overview

Use the download button to access the AD8293G80BRJZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD829, or try a keyword search, such as Instrumentation Amplifiers
