AD8314ACPZ-RL7 - Analog Devices

Description: Analog Devices AD8314ACPZ-RL7, RF Controller 2.5 GHz 4 8-Pin LFCSP VD

Download AD8314ACPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

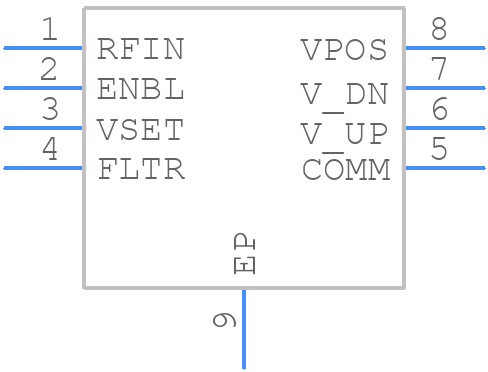

AD8314ACPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8314ACPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP_8
click to zoom
3D Models
AD8314ACPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - LFCSP_8
click to zoom

AD8314ACPZ-RL7 Details

  • Manufacturer Part Number:

    AD8314ACPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    2 X 3 MM, LEAD FREE, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD8314ACPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8314ACPZ-RL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedances are matched, and the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the AD8314ACPZ-RL7 is 1.4W. However, this can be affected by the operating conditions, such as temperature and supply voltage. It's essential to ensure the device is operated within its recommended operating conditions to avoid overheating.
  • The AD8314ACPZ-RL7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking and cooling in high-temperature applications.
  • To troubleshoot issues with the AD8314ACPZ-RL7, start by verifying the power supply and input/output connections. Check for proper PCB layout and component values. Use oscilloscopes and signal generators to test the device's input and output signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8314ACPZ-RL7 Overview

Use the download button to access the AD8314ACPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD831, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
