- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD8320ARP
- Part Number AD8320ARP
- Manufacturer Analog Devices
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Small Outline Packages

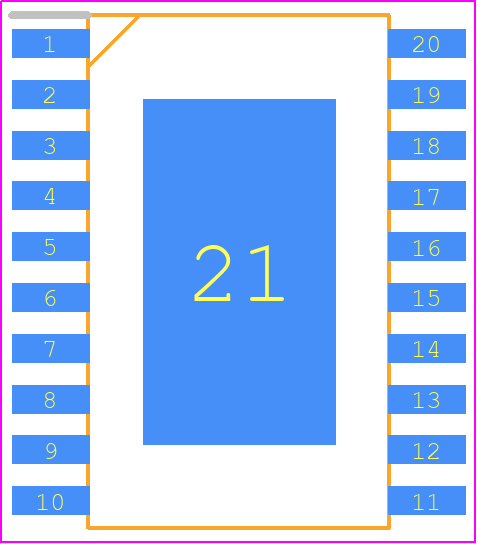

- Footprint Name Small Outline Packages - 20-Lead Thermally Enhanced Power Small Outline Package (RP-20)
- Released Date May 19, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8320ARP Details
-
Manufacturer Part Number:
AD8320ARP
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-20
-
Pin Count:
20
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
JESD-30 Code:
R-PDSO-G20
-
JESD-609 Code:
e0
AD8320ARP Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD8320ARP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the AD8320ARP evaluation board layout for a reference design.
-
To optimize the performance of the AD8320ARP in a high-frequency application, ensure that the input and output impedance matching is correct, use a low-ESR decoupling capacitor, and minimize the length of the input and output traces. Additionally, consider using a shielded enclosure and keeping the device away from noise sources.
-
The maximum power dissipation of the AD8320ARP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.3W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and thermal resistance of the system.
-
Yes, the AD8320ARP can be used in a non-50Ω system, but the input and output impedance matching may need to be adjusted accordingly. The device is designed to operate with a 50Ω input and output impedance, but it can be adapted to other impedance systems with proper impedance matching networks.
-
To troubleshoot common issues with the AD8320ARP, such as oscillation or instability, check the PCB layout for any errors or omissions, ensure that the input and output impedance matching is correct, and verify that the power supply is stable and clean. Also, check for any signs of overheating or thermal stress. Consult the AD8320ARP datasheet and application notes for more detailed troubleshooting guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
AD8320ARP Overview

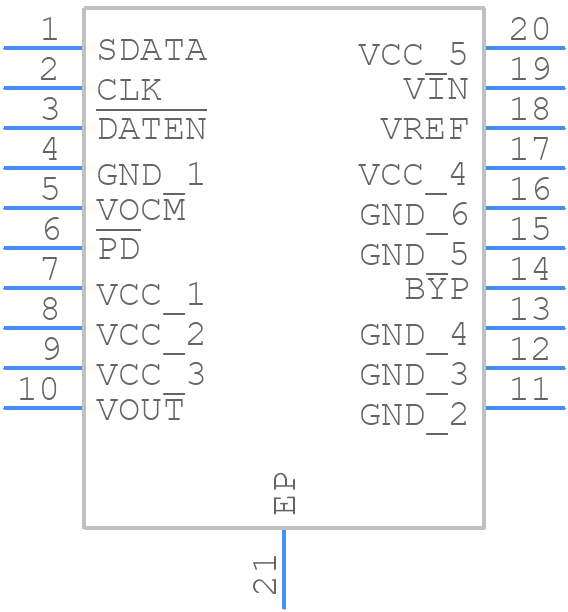

Use the download button to access the AD8320ARP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD832,
or try a keyword search, such as Other Telecom ICs
