AD8330ACPZ-RL - Analog Devices

Description: Fully differential signal path, also used with single-sided signals Inputs from 0.3 mV to 1 V rms, rail-to-rail outputs Differential RIN = 1 kΩ; ROUT (each output) 75 Ω Automatic offset compensation (optional) Linear-in-dB and linear-in-magnitude gain modes 0 dB to 50 dB, for 0 V < VDBS < 1.5 V (30 mV/dB) Inverted gain mode: 50 dB to 0 dB at −30 mV/dB ×0.03 to ×10 nominal gain for 15 mV < VMAG < 5 V Constant bandwidth: 150 MHz at all gains Low noise: 5 nV/√Hz typical at maximum gain Low distortion

Download AD8330ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

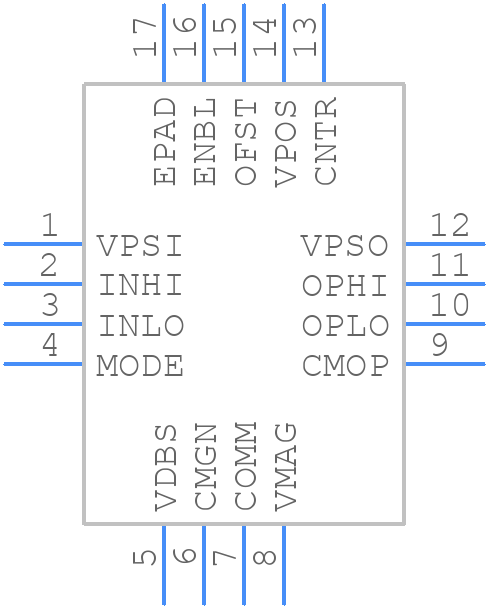

AD8330ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8330ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.75 mm Package Height (CP-16-27)
click to zoom
3D Models
AD8330ACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.75 mm Package Height (CP-16-27)
click to zoom

AD8330ACPZ-RL Details

  • Manufacturer Part Number:

    AD8330ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-27

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8330ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8330 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended layout diagram that can be used as a starting point.
  • The gain and bandwidth of the AD8330 can be optimized by selecting the appropriate gain setting resistors (R1 and R2) and capacitor values (C1 and C2). The datasheet provides a gain-bandwidth calculator that can be used to determine the optimal component values for a specific application. Additionally, the device's gain and bandwidth can be fine-tuned using the adjustable gain feature.
  • The maximum input signal amplitude that the AD8330 can handle without distortion is dependent on the gain setting and the supply voltage. In general, the device can handle input signals up to 2 Vpp (peak-to-peak) without distortion. However, this can be increased to 4 Vpp or more by using an external attenuator or by reducing the gain setting.
  • The AD8330 is specified to operate over a temperature range of -40°C to +125°C. To ensure that the device operates within this range, it is recommended to use a thermally conductive package, such as the LFCSP package, and to provide adequate heat sinking and airflow around the device. Additionally, the device's temperature can be monitored using an external temperature sensor or by using the device's internal temperature sensor (available on some packages).
  • The recommended power-up sequence for the AD8330 is to apply the power supply voltage (VCC) first, followed by the analog input signal. This ensures that the device's internal biasing and gain setting circuits are properly initialized before the input signal is applied. Additionally, it is recommended to use a power supply with a low noise and low ripple output to minimize the impact of power supply noise on the device's performance.
