AD8330ARQZ-RL - Analog Devices

Description: SP Amp Variable Gain Amp Single R-R O/P 6V 16-Pin QSOP T/R

Download AD8330ARQZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

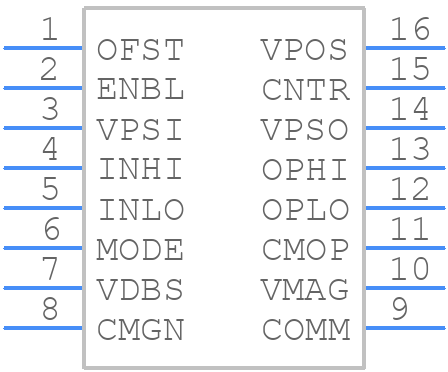

AD8330ARQZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8330ARQZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Shrink Small Outline Package [QSOP]16
click to zoom
3D Models
AD8330ARQZ-RL - Analog Devices - 3D model - Small Outline Packages - 16-Lead Shrink Small Outline Package [QSOP]16
click to zoom

AD8330ARQZ-RL Details

  • Manufacturer Part Number:

    AD8330ARQZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD8330ARQZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8330ARQZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to keep the signal traces short and direct.
  • To optimize the gain and bandwidth of the AD8330ARQZ-RL, you can adjust the gain setting resistors (R1 and R2) and the bandwidth setting capacitors (C1 and C2) according to the datasheet. You can also use the ADIsimPLL tool from Analog Devices to simulate and optimize the performance of the device for your specific application.
  • The maximum input signal amplitude that the AD8330ARQZ-RL can handle without saturating or distorting is approximately 2.5 Vpp differential. Exceeding this limit may result in signal distortion, clipping, or even device damage.
  • To ensure proper biasing and powering of the AD8330ARQZ-RL, make sure to follow the recommended power supply voltage (2.7 V to 5.5 V) and decoupling capacitor values (10 nF to 100 nF) specified in the datasheet. Additionally, ensure that the device is properly grounded and that the power supply is clean and stable.
  • The typical settling time of the AD8330ARQZ-RL is around 10 μs to 20 μs, depending on the gain and bandwidth settings. This settling time can affect the overall performance of your system, particularly in applications that require fast signal acquisition or high-speed data conversion.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8330ARQZ-RL Overview

Use the download button to access the AD8330ARQZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD833, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
