AD8331ARQZ-RL - Analog Devices

Description: Special Purpose Amplifiers SGL VGA w/ Ultra low Noise

Download AD8331ARQZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

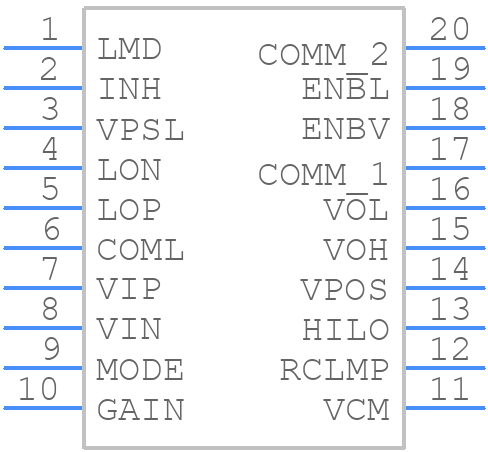

AD8331ARQZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8331ARQZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package (QSOP)20
click to zoom
3D Models
AD8331ARQZ-RL - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package (QSOP)20
click to zoom

AD8331ARQZ-RL Details

  • Manufacturer Part Number:

    AD8331ARQZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-137AD, QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

AD8331ARQZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8331ARQZ-RL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADI's PCB layout guidelines for more information.
  • To optimize the performance of the AD8331ARQZ-RL, it's essential to understand the specific requirements of your application. Consider factors such as input signal frequency, amplitude, and impedance, as well as the desired gain and bandwidth. Consult with ADI's application engineers or refer to the device's evaluation board documentation for guidance on optimizing performance.
  • The maximum power dissipation of the AD8331ARQZ-RL is dependent on the operating conditions, such as supply voltage and temperature. According to the datasheet, the maximum power dissipation is approximately 450 mW at 25°C with a 5 V supply. However, it's essential to perform thermal calculations and consider the device's thermal resistance to ensure safe operation.
  • The AD8331ARQZ-RL is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. Consult with ADI's application engineers or refer to the device's reliability report to determine the suitability of the device for your specific high-temperature application.
  • To troubleshoot issues with the AD8331ARQZ-RL, start by verifying the device's power supply and input/output connections. Check for proper termination, decoupling, and signal integrity. Use oscilloscopes and signal generators to verify the input and output signals. Consult the device's datasheet, application notes, and evaluation board documentation for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8331ARQZ-RL Overview

Use the download button to access the AD8331ARQZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD833, or try a keyword search, such as Other Consumer ICs
