AD8332ACPZ-R2 - Analog Devices

Description: Analog Devices AD8332ACPZ-R2, 3 Voltage Controlled Amplifier Differential 5 V 32-Pin LFCSP

Download AD8332ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

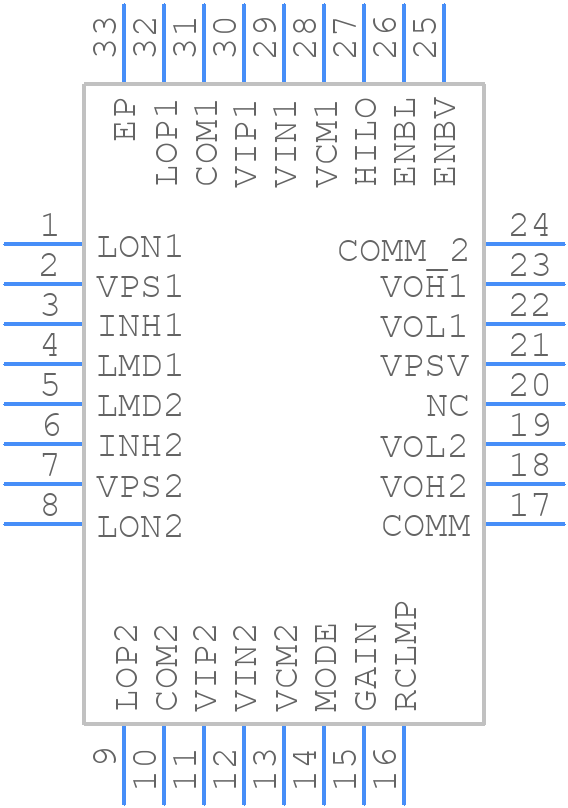

Symbol
AD8332ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8332ACPZ-R2 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
AD8332ACPZ-R2 - Analog Devices - 3D model - Other - QFN50P500X500X100-33N
click to zoom

AD8332ACPZ-R2 Details

  • Manufacturer Part Number:

    AD8332ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD8332ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8332ACPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and to decouple the power supplies with 10uF and 100nF capacitors.
  • To optimize the performance of the AD8332ACPZ-R2 in a noisy environment, use shielding, filtering, and grounding techniques. Use a shielded enclosure, add EMI filters to the input and output lines, and ensure a low-impedance ground connection. Additionally, consider using a common-mode choke to reduce electromagnetic interference.
  • The AD8332ACPZ-R2 has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of 0°C to +85°C for optimal performance.
  • Yes, the AD8332ACPZ-R2 is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified for automotive and industrial applications. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability in the specific application.
  • Common issues with the AD8332ACPZ-R2 include oscillations, noise, and gain errors. To troubleshoot these issues, check the PCB layout, ensure proper power supply decoupling, and verify the input and output signal integrity. Also, check the device's operating conditions, such as temperature and supply voltage, and consult the datasheet and application notes for guidance.
