AD8332ARUZ - Analog Devices

Description: Dual VGA with Ultralow Noise Preamplifier and Programmable RIN

Download AD8332ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

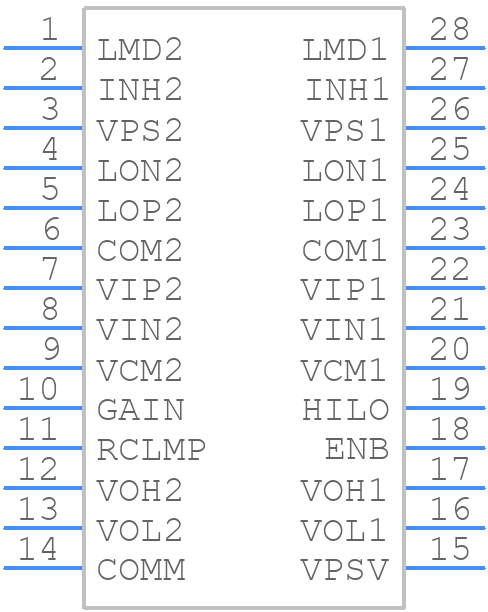

AD8332ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8332ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8332ARUZ
click to zoom
3D Models
AD8332ARUZ - Analog Devices - 3D model - Small Outline Packages - AD8332ARUZ
click to zoom

AD8332ARUZ Details

  • Manufacturer Part Number:

    AD8332ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8332ARUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
  • The gain and offset of the AD8332ARUZ can be optimized by adjusting the external resistors R1 and R2. The datasheet provides a formula to calculate the optimal values based on the desired gain and offset. Additionally, the ADIsimPE tool can be used to simulate and optimize the circuit.
  • The maximum input signal amplitude that the AD8332ARUZ can handle is ±10V, but it's recommended to keep the input signal within ±5V to ensure optimal performance and prevent distortion.
  • To ensure EMC, it's recommended to use a shielded enclosure, keep the analog and digital grounds separate, and use a common-mode choke or ferrite bead on the input signal lines. Additionally, follow proper PCB layout and routing guidelines to minimize electromagnetic interference.
  • The typical settling time of the AD8332ARUZ is around 10µs, but it can vary depending on the specific application and input signal characteristics. The datasheet provides more information on the settling time and how it can be affected by various factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8332ARUZ Overview

Use the download button to access the AD8332ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD833, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
