AD8333ACPZ-WP - Analog Devices

Description: AD8333ACPZ-WP, Demodulator Quadrature 4.7dB 32-Pin LFCSP EP

Download AD8333ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

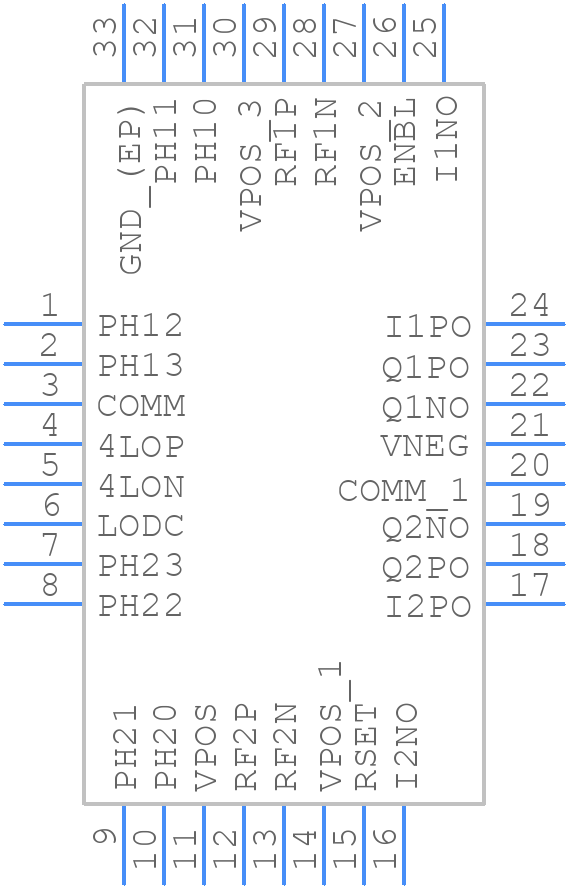

AD8333ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8333ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-2(LFCSP_VQ)
click to zoom
3D Models
AD8333ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-2(LFCSP_VQ)
click to zoom

AD8333ACPZ-WP Details

  • Manufacturer Part Number:

    AD8333ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD8333ACPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8333ACPZ-WP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the gain and bandwidth of the AD8333ACPZ-WP, you can adjust the gain resistors (R1 and R2) and the bandwidth capacitors (C1 and C2) according to the datasheet's equations and graphs. You can also use the ADI's Filter Wizard tool to help with the design.
  • The recommended power-up sequence for the AD8333ACPZ-WP is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • To ensure EMC and EMI compliance with the AD8333ACPZ-WP, follow proper PCB design and layout guidelines, use shielding and filtering techniques, and ensure that the device is properly decoupled and bypassed. Additionally, follow the guidelines outlined in the datasheet and relevant industry standards.
  • The recommended operating temperature range for the AD8333ACPZ-WP is -40°C to +125°C. Operating the device outside of this range can affect its performance, including gain, bandwidth, and noise figure. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance.
