AD8336ACPZ-WP - Analog Devices

Description: AD8336ACPZ-WP Analog Devices, 2-Channel Variable Gain Amplifier, 150MHz 550V/μs Single Ended O/P, 16-Pin LFCSP

Download AD8336ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

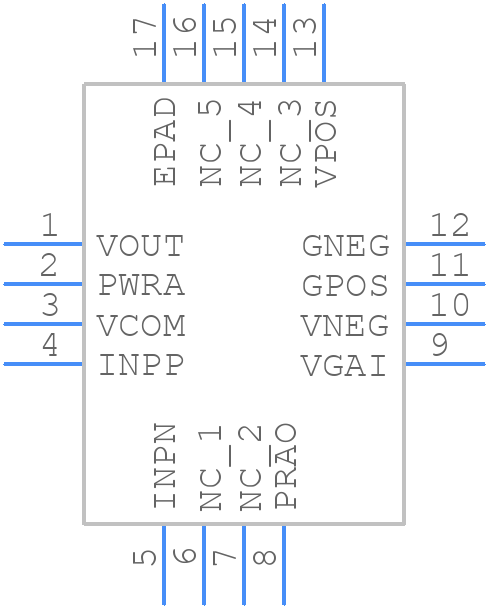

AD8336ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8336ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-4
click to zoom
3D Models
AD8336ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-4
click to zoom

AD8336ACPZ-WP Details

  • Manufacturer Part Number:

    AD8336ACPZ-WP

  • Source Url Status Check Date:

    2013-05-01 14:56:25.79

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-4

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8336ACPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8336ACPZ-WP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the gain and bandwidth of the AD8336ACPZ-WP, you can adjust the gain resistors (Rf and Rg) and the bandwidth capacitors (Cf and Cg) according to the datasheet's equations and graphs. You can also use the ADIsimPE tool from Analog Devices to simulate and optimize the performance of the device.
  • The recommended power-up sequence for the AD8336ACPZ-WP is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • To troubleshoot common issues with the AD8336ACPZ-WP, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Then, verify that the power supplies are stable and within the recommended range. Next, check the gain and bandwidth settings to ensure they are optimal for your application. If the issue persists, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The recommended thermal management strategy for the AD8336ACPZ-WP involves providing adequate airflow around the device, using a heat sink or thermal pad if necessary, and ensuring that the device is operated within its recommended temperature range. Additionally, you can use thermal interface materials and thermal vias to improve heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8336ACPZ-WP Overview

Use the download button to access the AD8336ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD833, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
