AD8351ARM - Analog Devices

Description: Low Distortion Differential RF/IF Amplifier

Download AD8351ARM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

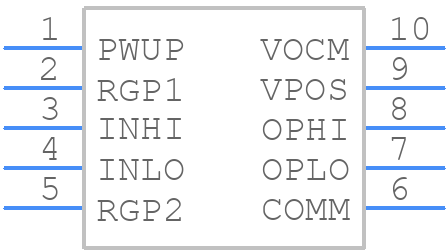

AD8351ARM - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8351ARM - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD8351ARM - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD8351ARM Details

  • Manufacturer Part Number:

    AD8351ARM

  • Source Url Status Check Date:

    2013-05-01 14:56:25.943

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187BA, SOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    0.015 mA

  • Surface Mount:

    YES
