AD8403ARZ50 - Analog Devices

Description: AD8403ARZ50, Digital Potentiometer 50kΩ 256-Position Linear 4-channel Serial-3 Wire, Serial-SPI 24-Pin SOIC W

Download AD8403ARZ50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

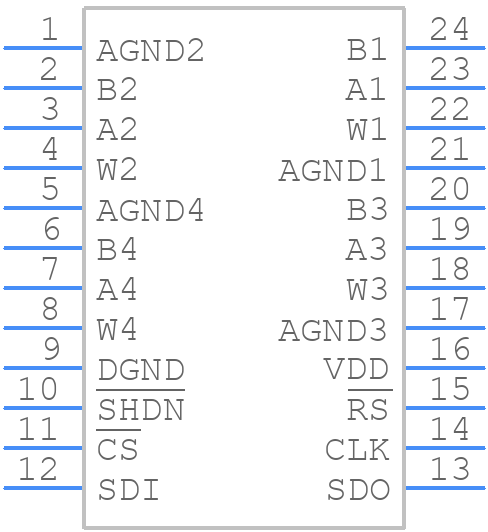

AD8403ARZ50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8403ARZ50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD8403ARZ50 - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD8403ARZ50 Details

  • Manufacturer Part Number:

    AD8403ARZ50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.125 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Positions:

    256

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    2%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    700 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    7.5 mm
