AD8410AWBRMZ - Analog Devices

Description: ??2 V to 70 V Wide Input Voltage Range, 2.2 MHz High Bandwidth, Current-Sense Amplifier with PWM Rejection and Gain 20 V/V

Download AD8410AWBRMZ Model

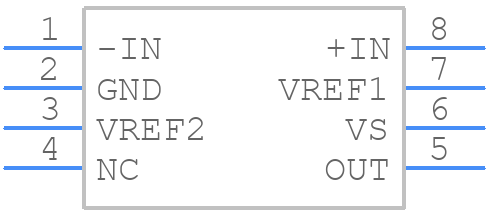

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8410AWBRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 8-Lead Mini Small Outline Package [MSOP]-
click to zoom
3D Models
AD8410AWBRMZ - Analog Devices  - 3D model - Small Outline Packages - . 8-Lead Mini Small Outline Package [MSOP]-
click to zoom

AD8410AWBRMZ Details

  • Manufacturer Part Number:

    AD8410AWBRMZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MICRO SOIC

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MICRO SOIC

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    484 µA

  • Common-mode Reject Ratio-Min:

    123 dB

  • Common-mode Reject Ratio-Nom:

    142 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    10.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

AD8410AWBRMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8410AWBRMZ involves keeping the input and output traces separate, using a ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and interference.
  • The AD8410AWBRMZ is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use thermal management techniques such as thermal pads or heat sinks. Additionally, consider the thermal characteristics of the PCB and surrounding components.
  • The recommended power-up sequence for the AD8410AWBRMZ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuits are powered up before the digital circuits, preventing incorrect operation or damage.
  • To prevent electrostatic discharge (ESD) damage, handle the AD8410AWBRMZ with ESD-protective equipment, such as wrist straps or mats. Ensure that the device is stored in an ESD-protective package, and avoid touching the pins or exposed internal components.
  • When soldering the AD8410AWBRMZ, use a low-temperature soldering iron (less than 260°C) and a solder with a low melting point. Avoid applying excessive heat or force, which can damage the device or its internal components. Use a soldering technique that minimizes the risk of overheating, such as using a soldering iron with a temperature-controlled tip.
