AD8411AWBRZ - Analog Devices

Description: -2 V to 70 V Wide Input Voltage Range, 2.7 MHz High Bandwidth, Current-Sense Amplifier with PWM Rejection and Gain 50 V/V

Download AD8411AWBRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

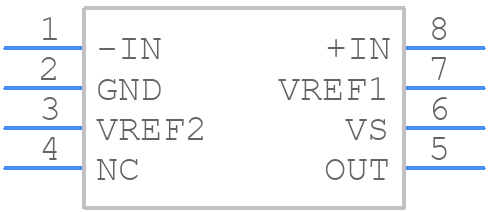

Symbol
AD8411AWBRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8411AWBRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8_23
click to zoom
3D Models
AD8411AWBRZ - Analog Devices - 3D model - Small Outline Packages - R-8_23
click to zoom

AD8411AWBRZ Details

  • Manufacturer Part Number:

    AD8411AWBRZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 150 MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC 150 MIL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-04-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    484 µA

  • Common-mode Reject Ratio-Min:

    123 dB

  • Common-mode Reject Ratio-Nom:

    142 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    10.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3.9 mm

AD8411AWBRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8411AWBRZ involves keeping the input and output traces separate, using a ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and interference.
  • The gain resistor (Rg) for the AD8411AWBRZ is chosen based on the desired gain and input voltage range. A higher gain resistor value results in higher gain, but also increases the noise and offset voltage. A good starting point is to use the recommended values in the datasheet, and then adjust based on the specific application requirements.
  • The maximum allowable input voltage for the AD8411AWBRZ is ±25V, but it's recommended to limit the input voltage to ±20V to ensure reliable operation and prevent damage to the device.
  • To handle EMI and RFI, use shielding, filtering, and grounding techniques. Place the AD8411AWBRZ in a shielded enclosure, use ferrite beads or chokes on the input and output lines, and ensure a solid ground connection. Additionally, use a low-pass filter on the input signal to reduce high-frequency noise.
  • A good power supply decoupling scheme for the AD8411AWBRZ involves using a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, both placed close to the device. This helps to filter out high-frequency noise and ensure a stable power supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8411AWBRZ Overview

Use the download button to access the AD8411AWBRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD841, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
