AD8420ARMZ - Analog Devices

Description: Analog Devices AD8420ARMZ Instrumentation Amplifier, 250μV Offset 250kHz GBW, CMMR 100dB, 2.7 → 36 V, 8-Pin MSOP

Download AD8420ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

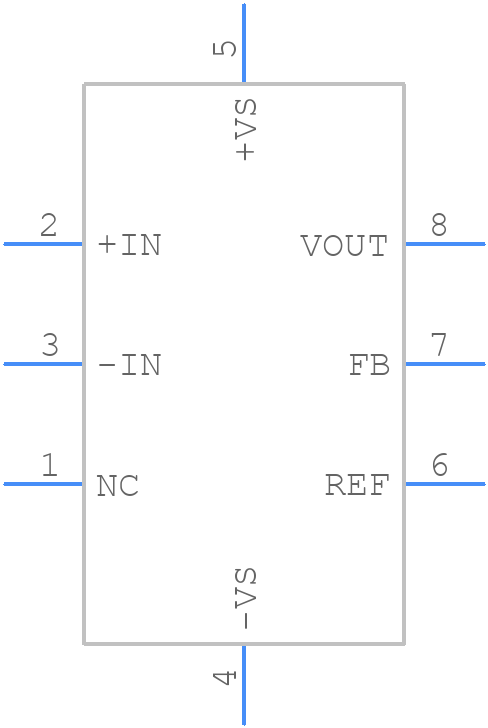

AD8420ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8420ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom
3D Models
AD8420ARMZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom

AD8420ARMZ Details

  • Manufacturer Part Number:

    AD8420ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.027 µA

  • Bandwidth (3dB)-Nom:

    0.25 MHz

  • Common-mode Reject Ratio-Min:

    92 dB

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.09 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3 mm

AD8420ARMZ Frequently Asked Questions (FAQs)

  • The AD8420ARMZ is a high-gain, high-impedance amplifier, so it's crucial to follow proper layout and placement guidelines to minimize noise and ensure optimal performance. Keep the input traces short and away from noise sources, use a solid ground plane, and place the amplifier close to the input signal source. Also, ensure that the power supply decoupling capacitors are placed close to the amplifier.
  • The gain resistor (Rg) value depends on the desired gain and the input impedance of the amplifier. Use the formula Rg = (Rin * (G - 1)) / (G * (Rin + Rf)) to calculate the gain resistor value, where Rin is the input impedance, G is the desired gain, and Rf is the feedback resistor. Consult the datasheet for more information on gain resistor selection.
  • The AD8420ARMZ can handle input voltages up to ±10V, but the maximum input voltage is limited by the power supply voltage. Ensure that the input voltage does not exceed the power supply voltage to prevent damage to the amplifier.
  • To reduce noise and oscillations, use a low-pass filter at the input, add a capacitor in parallel with the gain resistor, and ensure that the power supply is well-regulated and decoupled. Also, use a solid ground plane, keep the input traces short, and avoid routing signals near noise sources.
  • Yes, the AD8420ARMZ can be used as a single-ended amplifier by connecting the negative input to ground and using the positive input as the signal input. However, keep in mind that the amplifier's common-mode rejection ratio (CMRR) will be degraded in single-ended mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8420ARMZ Overview

Use the download button to access the AD8420ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD842, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
