AD8422BRMZ-R7 - Analog Devices

Description: Instrumentation Amplifiers High Performance InAmp

Download AD8422BRMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

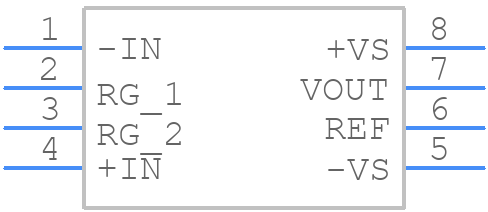

AD8422BRMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8422BRMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP]--1
click to zoom
3D Models
AD8422BRMZ-R7 - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP]--1
click to zoom

AD8422BRMZ-R7 Details

  • Manufacturer Part Number:

    AD8422BRMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bandwidth (3dB)-Nom:

    2.2 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.0003 µA

  • Input Offset Voltage-Max:

    75 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.002%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3 mm

AD8422BRMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8422BRMZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal source. Additionally, using a 4-layer PCB with a dedicated analog ground plane can help reduce noise and improve performance.
  • To ensure proper biasing, connect the VREF pin to a stable voltage reference, and ensure the input common-mode voltage is within the recommended range (typically 1.5V to 3.5V). Also, ensure the output voltage is within the recommended range (typically 0.5V to 4.5V) to avoid output stage saturation.
  • The recommended input impedance for the AD8422BRMZ-R7 is 1 kΩ to 10 kΩ. A higher input impedance can lead to reduced bandwidth and increased noise, while a lower input impedance can result in increased power consumption and reduced linearity.
  • To minimize EMI and RFI interference, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter or ferrite bead on the input lines. Additionally, ensure good PCB layout practices, such as keeping the input and output traces separate, and using a solid ground plane.
  • The AD8422BRMZ-R7 operates from -40°C to 125°C. Temperature affects the amplifier's performance, with increased temperature resulting in reduced bandwidth, increased noise, and decreased linearity. Ensure proper thermal management and heat sinking to maintain optimal performance.
