AD8422BRMZ - Analog Devices

Description: Instrumentation Amplifier RRO 36V MSOP8 Analog Devices AD8422BRMZ, Instrumentation Amplifier, 50μV Offset 2.2MHz, R-RO, 8-Pin MSOP

Download AD8422BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

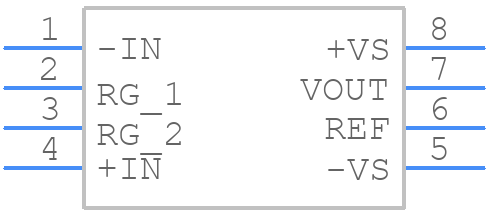

AD8422BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8422BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP]-
click to zoom
3D Models
AD8422BRMZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP]-
click to zoom

AD8422BRMZ Details

  • Manufacturer Part Number:

    AD8422BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bandwidth (3dB)-Nom:

    2.2 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.0003 µA

  • Input Offset Voltage-Max:

    75 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.002%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3 mm

AD8422BRMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8422BRMZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal source. Additionally, using a 4-layer PCB with a dedicated analog ground plane can help reduce noise and improve performance.
  • To ensure proper biasing, connect the VREF pin to a stable voltage reference, and ensure the input common-mode voltage is within the recommended range (typically 1.5V to 3.5V). Also, ensure the output voltage is within the recommended range (typically 0.5V to 4.5V) to avoid output stage saturation.
  • The recommended input impedance for the AD8422BRMZ is 1 kΩ to 10 kΩ. A higher input impedance can lead to reduced bandwidth and increased noise, while a lower input impedance can lead to increased power consumption and reduced linearity.
  • To minimize EMI and RFI interference, use a shielded enclosure, keep the input and output cables short and shielded, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure the PCB layout is designed to minimize radiation and susceptibility to external interference.
  • The AD8422BRMZ operates from -40°C to 125°C. Temperature affects the amplifier's performance, with increased temperature leading to increased offset voltage, reduced bandwidth, and increased noise. Ensure proper thermal management and heat sinking to maintain optimal performance.
