AD8426BCPZ-WP - Analog Devices

Description: ANALOG DEVICES - AD8426BCPZ-WP - Instrument Amplifier, 2 Amplifier, 100 µV, 0.6 V/µs, 1 GHz, 2.2V to 36V, ± 1.35V to ± 18V, LFCSP

Download AD8426BCPZ-WP Model

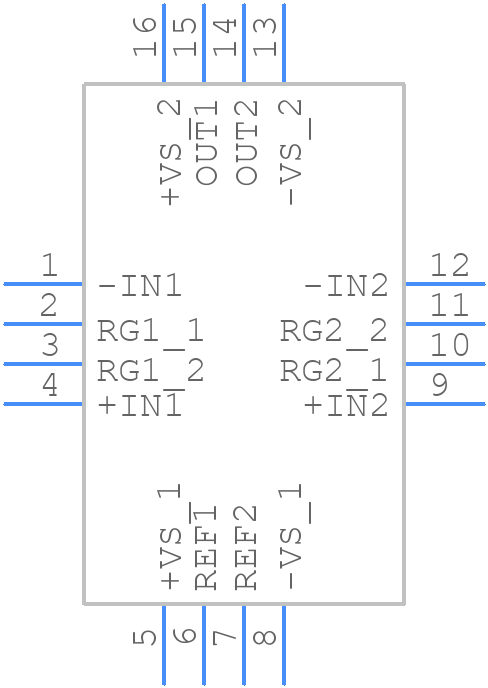

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8426BCPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-19 (LFCSP)
click to zoom
3D Models
AD8426BCPZ-WP - Analog Devices  - 3D model - Quad Flat No-Lead - CP-16-19 (LFCSP)
click to zoom

AD8426BCPZ-WP Details

  • Manufacturer Part Number:

    AD8426BCPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-263VBBC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-19

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.027 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Current-Max (IIO):

    0.0005 µA

  • Input Offset Voltage-Max:

    100 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.075%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    4 mm

AD8426BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8426BCPZ-WP involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated analog ground plane can help reduce noise and improve performance.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 4.5V and 36V, and the VNEG pin to a stable voltage source between -4.5V and -36V. The voltage difference between VPOS and VNEG should be at least 4.5V. Additionally, decouple the power supplies with 10uF capacitors to reduce noise.
  • The AD8426BCPZ-WP can handle input voltages up to ±40V without damage. However, the device is specified to operate with input voltages up to ±20V, and exceeding this range may affect performance and accuracy.
  • The gain of the AD8426BCPZ-WP can be calculated using the formula: Gain = (Rf/Rg) x (1 + (Rb/Ra)), where Rf, Rg, Rb, and Ra are the external resistors connected to the device. The gain can be adjusted by selecting the appropriate values for these resistors.
  • The typical settling time of the AD8426BCPZ-WP is around 2.5μs to 0.01% of the final value. However, this can vary depending on the specific application, input signal, and output load.
