AD8429BRZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8429BRZ-R7 - Instrument Amplifier, 1 Amplifier, 50 µV, 22 V/µs, 15 MHz, ± 4V to ± 18V, NSOIC

Download AD8429BRZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

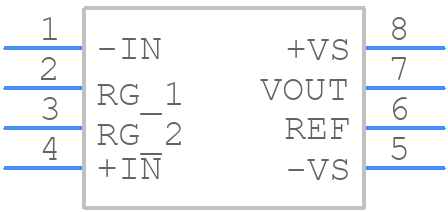

AD8429BRZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8429BRZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD8429BRZ-R7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD8429BRZ-R7 Details

  • Manufacturer Part Number:

    AD8429BRZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.15 µA

  • Bandwidth (3dB)-Nom:

    15 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Current-Max (IIO):

    0.03 µA

  • Input Offset Voltage-Max:

    50 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    22 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Gain-Max:

    10000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3.9 mm

AD8429BRZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8429BRZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and crosstalk.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 4.5V and 36V, and the VNEG pin to a stable voltage source between -4.5V and -36V. The voltage difference between VPOS and VNEG should be at least 4.5V. Also, ensure that the input common-mode voltage is within the recommended range of VNEG + 1.5V to VPOS - 1.5V.
  • The AD8429BRZ-R7 can handle input voltages up to ±40V without damage. However, the device is only specified to operate with input voltages up to ±10V. Exceeding the maximum input voltage can result in permanent damage to the device.
  • To filter out high-frequency noise, a low-pass filter can be added to the output of the AD8429BRZ-R7. A simple RC filter with a cutoff frequency of around 100 kHz to 1 MHz can be effective in reducing high-frequency noise. Additionally, using a ferrite bead or a common-mode choke in the output stage can also help to reduce high-frequency noise.
  • The recommended output load impedance for the AD8429BRZ-R7 is ≥1 kΩ. A load impedance of less than 1 kΩ can result in reduced output voltage swing and increased distortion.
