AD8432ACPZ-WP - Analog Devices

Description: Dual-Channel Ultralow Noise Amplifier with Selectable Gain and Input Impedance

Download AD8432ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

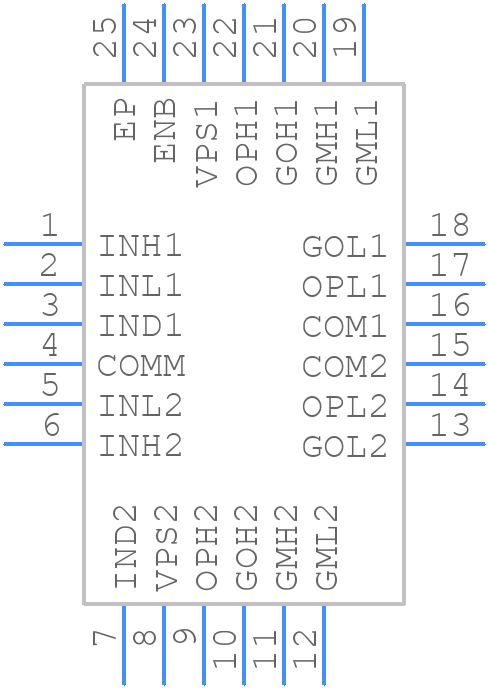

AD8432ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8432ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
AD8432ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

AD8432ACPZ-WP Details

  • Manufacturer Part Number:

    AD8432ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    6250 µV

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    295 V/us

  • Supply Current-Max:

    24 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Wideband:

    YES

  • Width:

    4 mm

AD8432ACPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8432ACPZ-WP involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure the accuracy of the AD8432ACPZ-WP's output voltage, it's essential to use a high-precision voltage reference, such as the ADR4520 or ADR4540, and to minimize noise and interference on the input and output lines. Additionally, the output voltage should be buffered with an op-amp, such as the OP07, to prevent loading effects.
  • The maximum output current of the AD8432ACPZ-WP is 10mA. However, it's recommended to limit the output current to 5mA or less to ensure the device operates within its specified temperature range and to prevent overheating.
  • The AD8432ACPZ-WP is rated for operation from -40°C to +125°C. However, the device's accuracy and stability may be affected at high temperatures. It's recommended to derate the output voltage and current at high temperatures and to ensure proper heat sinking and thermal management.
  • To troubleshoot issues with the AD8432ACPZ-WP, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input and output pins are properly connected and not shorted. Use an oscilloscope to check for noise and oscillations on the output, and ensure that the device is properly decoupled and bypassed.
