AD8436JCPZ-R7 - Analog Devices

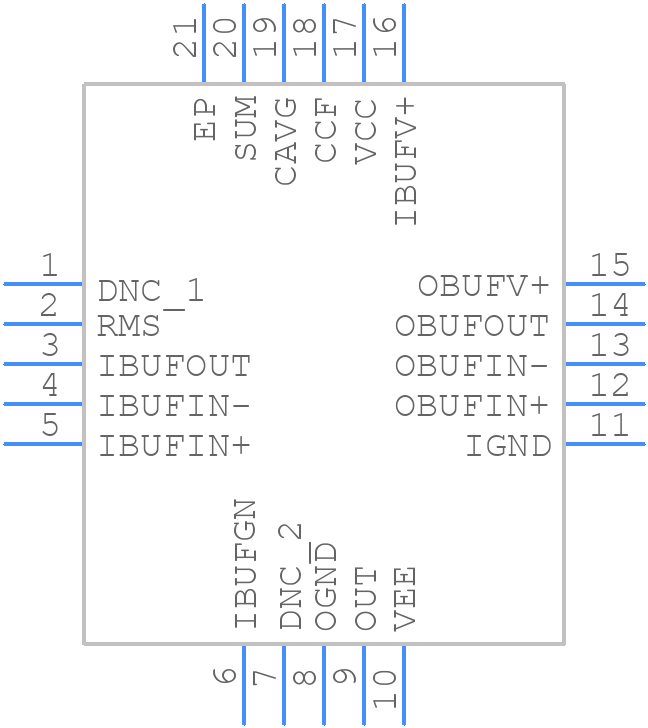

AD8436JCPZ-R7 Details

• Manufacturer Part Number:

  AD8436JCPZ-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  LFCSPWQ-20

• Pin Count:

  20

• Manufacturer Package Code:

  CP-20-8

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO OPERATES IN SINGLE SUPPLY VOLTAGE RANGE FROM 4.8 TO 36 VOLT

• Converter Type:

  RMS TO DC CONVERTER

• JESD-30 Code:

  S-XQCC-N20

• JESD-609 Code:

  e3

• Length:

  4 mm

• Linearity Error-Max (EL):

  0.006%

• Moisture Sensitivity Level:

  3

• Negative Input Voltage-Max:

  -18 V

• Negative Supply Voltage-Max:

  -18 V

• Negative Supply Voltage-Min:

  -2.4 V

• Negative Supply Voltage-Nom:

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Frequency-Max:

  0.001 MHz

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Positive Input Voltage-Max:

  36 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  0.4 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  2.4 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4 mm
