AD8522ANZ - Analog Devices

Description: AD8522ANZ, 12 bit-Bit DAC Dual, 62.5ksps, SPI, 14-Pin PDIP

Download AD8522ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

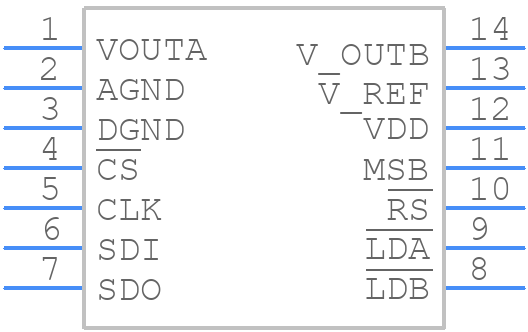

AD8522ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

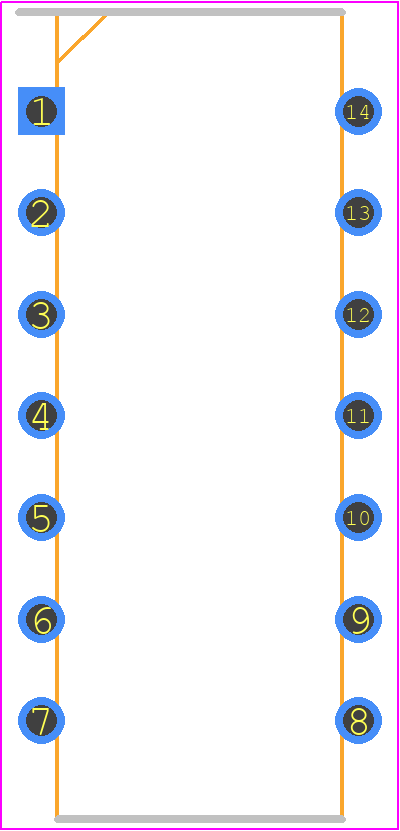

AD8522ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14_2020
click to zoom
3D Models
AD8522ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14_2020
click to zoom

AD8522ANZ Details

  • Manufacturer Part Number:

    AD8522ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    N-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8522ANZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8522ANZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD8522ANZ in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum power dissipation of the AD8522ANZ is 1.4W, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package.
  • The AD8522ANZ is rated for operation from -40°C to 125°C, but the device's performance may degrade at high temperatures. It's recommended to derate the power supply voltage and reduce the output current to ensure reliable operation at high temperatures.
  • To troubleshoot issues with the AD8522ANZ, check the power supply voltage, input voltage, and output voltage using an oscilloscope or a multimeter. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB.
