- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD8556ARZ
- Part Number AD8556ARZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC 8_2020
- Released Date Nov 29, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8556ARZ Details
-
Manufacturer Part Number:
AD8556ARZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
AD8556ARZ Frequently Asked Questions (FAQs)
-
The AD8556ARZ is a high-precision, high-impedance device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the input traces short and shielded, and place the device close to the analog ground plane.
-
The AD8556ARZ is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
-
The recommended power-up sequence for the AD8556ARZ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuitry is powered up before the digital interface.
-
To minimize EMI and RFI, use a shielded enclosure, keep the input traces short and shielded, and use a common-mode choke or ferrite bead on the input lines. Also, consider using a low-pass filter or a shielding material around the device.
-
The AD8556ARZ has an internal calibration circuit that can be used to calibrate the device. The recommended calibration procedure involves applying a known input voltage, measuring the output, and adjusting the internal calibration registers accordingly.
Trust Checks
Community Provided
System Verified
Community Approved
AD8556ARZ Overview

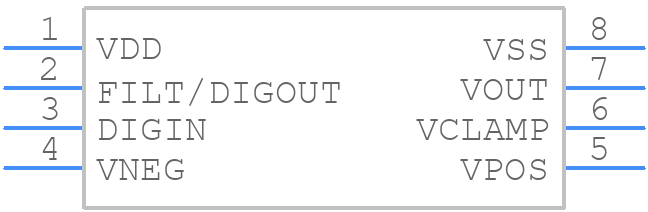

Use the download button to access the AD8556ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD855,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
