AD8557ARZ - Analog Devices

Description: AD8557ARZ, Instrumentation Amplifier, 0.012mV Offset, 8MHz 75dB CMRR, 3 V, 5 V, 8-Pin SOIC

Download AD8557ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

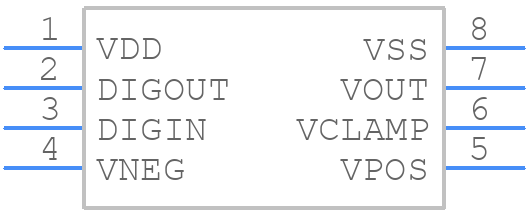

AD8557ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8557ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-08
click to zoom
3D Models
AD8557ARZ - Analog Devices - 3D model - Small Outline Packages - R-08
click to zoom

AD8557ARZ Details

  • Manufacturer Part Number:

    AD8557ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

AD8557ARZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8557ARZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the AD8557ARZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Use a low-pass filter at the input to reject high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum power dissipation of the AD8557ARZ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 670mW at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and thermal resistance of the package.
  • The AD8557ARZ is rated for operation from -40°C to 125°C. However, the device's performance and accuracy may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the AD8557ARZ in high-temperature environments.
  • Common issues with the AD8557ARZ include noise, oscillation, and inaccurate readings. To troubleshoot these issues, check the power supply, input signals, and PCB layout for noise and interference. Verify that the device is properly configured and that the input signals are within the specified range. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
