AD8592ARMZ-REEL - Analog Devices

Description: Precision Amplifiers CMOS RRIO Dual w/+-250mA Outpt Crnt

Download AD8592ARMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

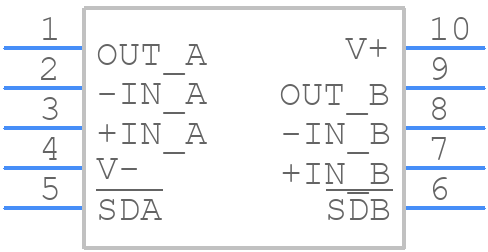

Symbol
AD8592ARMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8592ARMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)_1
click to zoom
3D Models
AD8592ARMZ-REEL - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)_1
click to zoom

AD8592ARMZ-REEL Details

  • Manufacturer Part Number:

    AD8592ARMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, SOIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00006 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    38 dB

  • Common-mode Reject Ratio-Nom:

    45 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    30000 µV

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3 mm

AD8592ARMZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8592 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The gain resistor values depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor tolerance and temperature coefficient.
  • The maximum power dissipation of the AD8592 is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the device away from other heat sources. Also, ensure good airflow and avoid operating the device at maximum power for extended periods.
  • Yes, the AD8592 can be used as a single-ended amplifier. To do so, connect the inverting input to ground, and apply the input signal to the non-inverting input. However, keep in mind that the single-ended configuration will have a lower common-mode rejection ratio (CMRR) compared to the differential configuration.
  • To filter out noise and interference, use a combination of passive and active filtering techniques. Use capacitors and resistors to filter out high-frequency noise, and consider adding a low-pass filter or a notch filter to remove specific frequency components. Also, ensure good PCB layout practices and use shielding to minimize electromagnetic interference (EMI).
