AD8597ACPZ-REEL7 - Analog Devices

Description: Op Amps

Download AD8597ACPZ-REEL7 Model

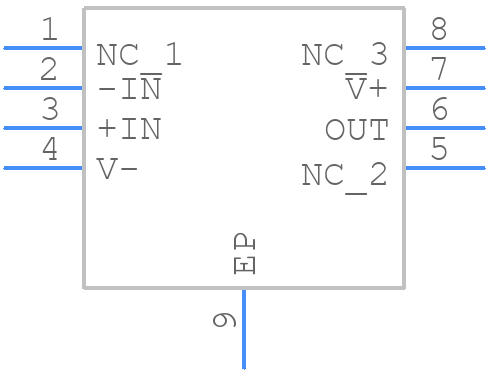

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8597ACPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP]-ren1
click to zoom
3D Models
AD8597ACPZ-REEL7 - Analog Devices  - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP]-ren1
click to zoom

AD8597ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD8597ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.34 µA

  • Bias Current-Max (IIB) @25C:

    0.21 µA

  • Common-mode Reject Ratio-Min:

    105 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    180 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Nom:

    14 V/us

  • Supply Current-Max:

    6.75 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3 mm

AD8597ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8597 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD8597 requires a dual supply voltage (±5V to ±15V) and a bias voltage (VCC) of 5V to 15V. Ensure the bias voltage is stable and noise-free, and that the input common-mode voltage is within the recommended range (VCC/2 ± 1V).
  • The AD8597 can drive up to 1nF of capacitive load. Exceeding this limit may cause instability or oscillations. If a larger capacitive load is required, consider adding a buffer amplifier or using a different op-amp.
  • Use shielding, filtering, and grounding techniques to minimize noise and EMI. Keep the AD8597 away from noise sources, use a low-pass filter at the input, and ensure a clean power supply. Consider using a ferrite bead or common-mode choke to filter out high-frequency noise.
  • The thermal resistance (θJA) of the AD8597ACPZ-REEL7 package is approximately 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C above the ambient temperature.
