AD8612ARUZ - Analog Devices

Description: AD8612ARUZ, Dual Comparator Complementary 14-Pin TSSOP

Download AD8612ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

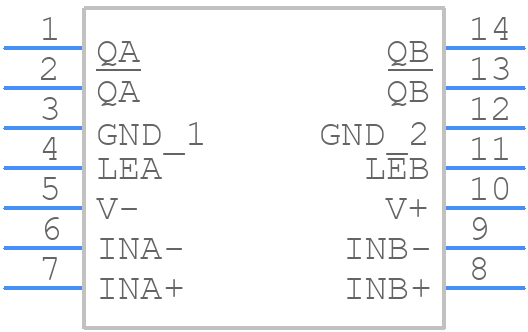

AD8612ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8612ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD8612ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD8612ARUZ Details

  • Manufacturer Part Number:

    AD8612ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    4 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    4.5 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8612ARUZ Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the AD8612ARUZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, ensure that the feedback network is properly designed to avoid oscillations.
  • The recommended input impedance for the AD8612ARUZ is in the range of 1kΩ to 10kΩ. This ensures optimal performance and minimizes the effects of input bias current and input capacitance.
  • While the AD8612ARUZ can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (2.5V/μs) and limited bandwidth (3MHz). A dedicated comparator like the AD8561 or AD9671 would be a better option for most applications.
  • To ensure ESD protection, follow proper handling and storage procedures for the AD8612ARUZ. Use ESD-protective packaging, handle the device by the body, and avoid touching the pins. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the circuit.
