AD9082BBPZ-4D2AC - Analog Devices

Description: AFE General Purpose 6 ADC 12bit 324-Pin TEBGA Tray

Download AD9082BBPZ-4D2AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9082BBPZ-4D2AC - Analog Devices - PCB symbol
click to zoom
PCB Footprints

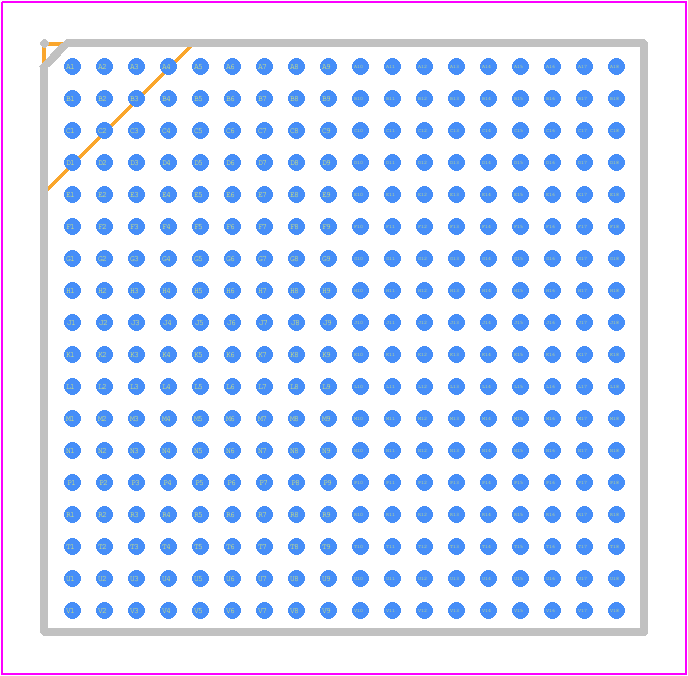

AD9082BBPZ-4D2AC - Analog Devices PCB footprint - BGA - BGA - 324 BGA
click to zoom
3D Models
AD9082BBPZ-4D2AC - Analog Devices - 3D model - BGA - 324 BGA
click to zoom

AD9082BBPZ-4D2AC Details

  • Manufacturer Part Number:

    AD9082BBPZ-4D2AC

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    BP-324-3

  • ECCN Code:

    3A001.A.5.A.3

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 1.8 AND 2 V

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA324,18X18,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

AD9082BBPZ-4D2AC Frequently Asked Questions (FAQs)

  • A good PCB layout and routing for the AD9082BBPZ-4D2AC involves keeping analog and digital signals separate, using a solid ground plane, and minimizing signal trace lengths. It's also recommended to follow the layout guidelines provided in the AD9082BBPZ-4D2AC evaluation board documentation.
  • To optimize the performance of the AD9082BBPZ-4D2AC, it's essential to minimize noise coupling, use proper shielding, and ensure good signal termination. Additionally, using a low-noise power supply, decoupling capacitors, and a well-designed PCB layout can help reduce noise and improve signal integrity.
  • The AD9082BBPZ-4D2AC has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermal interface material, and ensure good airflow around the device. The thermal management guidelines provided in the datasheet should be followed to prevent overheating.
  • The AD9082BBPZ-4D2AC can be programmed using the Analog Devices Inc. software development kit (SDK) and a programming interface such as SPI or I2C. The SDK provides a set of APIs and example code to help developers customize the device for their specific application.
  • To minimize EMI and RFI, it's essential to use proper shielding, filtering, and grounding techniques. The AD9082BBPZ-4D2AC should be placed in a shielded enclosure, and all cables and connectors should be properly shielded. Additionally, the device should be designed to meet the relevant electromagnetic compatibility (EMC) standards.
