AD9129BBCRL - Analog Devices

AD9129BBCRL Details

• Manufacturer Part Number:

  AD9129BBCRL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  BGA

• Package Description:

  CSPBGA-160

• Pin Count:

  160

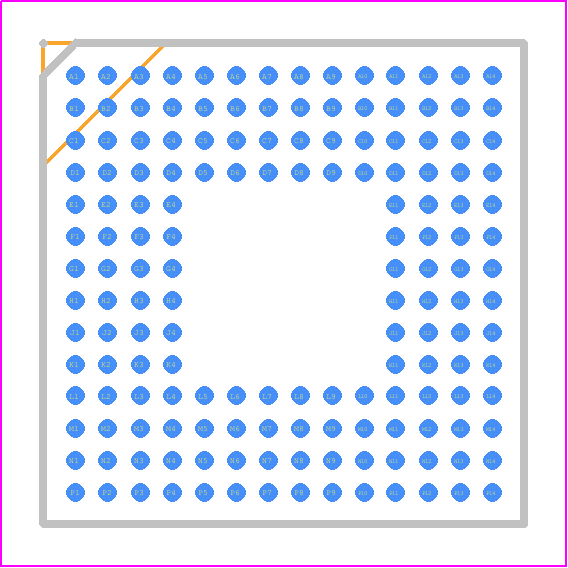

• Manufacturer Package Code:

  BC-160-1

• Country Of Origin:

  South Korea

• ECCN Code:

  3A001.A.5.B.2.B

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Output Voltage-Max:

  2.5 V

• Analog Output Voltage-Min:

  1.5 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  S-PBGA-B160

• JESD-609 Code:

  e0

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -1.5 V

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  160

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA160,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.4 mm

• Settling Time-Nom (tstl):

  0.013 µs

• Supply Current-Max:

  327 mA

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead/Silver (Sn/Pb/Ag)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  12 mm
