AD9161BBCZRL - Analog Devices

Description: 11-Bit, 12 GSPS, RF Digital-to-Analog Converters

Download AD9161BBCZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9161BBCZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

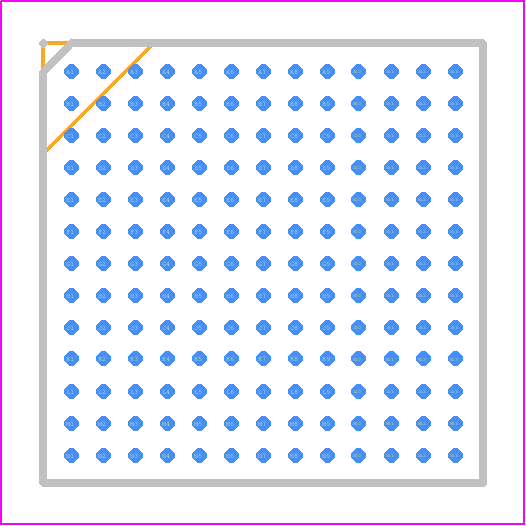

AD9161BBCZRL - Analog Devices PCB footprint - BGA - BGA - 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-169-2)
click to zoom
3D Models
AD9161BBCZRL - Analog Devices - 3D model - BGA - 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-169-2)
click to zoom

AD9161BBCZRL Details

  • Manufacturer Part Number:

    AD9161BBCZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSP_BGA-169

  • Pin Count:

    169

  • Manufacturer Package Code:

    BC-169-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL, PARALLEL, WORD

  • JESD-30 Code:

    S-PBGA-B169

  • JESD-609 Code:

    e1

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -1.2 V

  • Number of Bits:

    11

  • Number of Functions:

    1

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA169,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

AD9161BBCZRL Frequently Asked Questions (FAQs)

  • The recommended PCB layout and routing for the AD9161BBCZRL can be found in the AD9161 Evaluation Board documentation and the AD9161 Layout and Routing Guidelines document, both available on the Analog Devices website. These resources provide detailed guidance on how to optimize the PCB layout and routing for optimal performance.
  • To optimize the AD9161BBCZRL's performance for your specific application, you should consider factors such as the clock frequency, DAC output frequency, and signal bandwidth. You can use the AD9161's built-in calibration features and adjust the device's settings using the SPI interface to optimize performance. Additionally, Analog Devices provides a range of software tools and simulation models to help you optimize the device's performance for your specific application.
  • The AD9161BBCZRL is specified to operate over a temperature range of -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
  • To ensure the AD9161BBCZRL's digital outputs meet your system's EMC requirements, you should consider implementing proper digital output filtering, such as using series resistors and capacitors to reduce electromagnetic emissions. Additionally, you should ensure that the device's digital outputs are properly terminated and that the PCB layout and routing are optimized to minimize electromagnetic radiation.
  • The recommended power-up sequence for the AD9161BBCZRL is to first apply the analog power supply (AVDD) followed by the digital power supply (DVDD). This ensures that the device's analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up or damage to the device.
