AD9164BBCA - Analog Devices

Description: Digital to Analog Converters - DAC 16 Bit,6GSPS RF DAC &DDS w/interpolation

Download AD9164BBCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

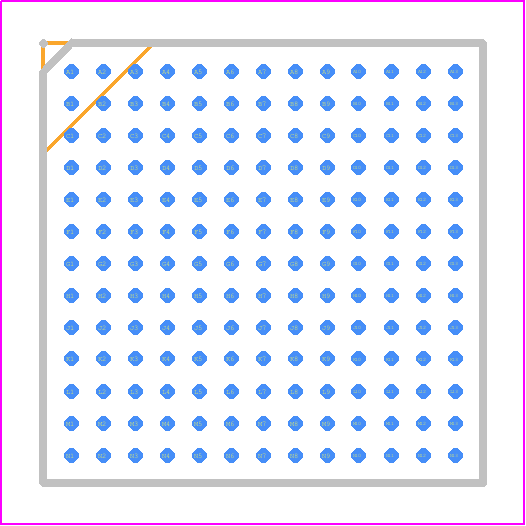

AD9164BBCA - Analog Devices PCB footprint - BGA - BGA - BC-169-2
click to zoom
3D Models
AD9164BBCA - Analog Devices  - 3D model - BGA - BC-169-2
click to zoom

AD9164BBCA Details

  • Manufacturer Part Number:

    AD9164BBCA

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-169

  • Pin Count:

    169

  • Manufacturer Package Code:

    BC-169-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.A.5.B.1

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B169

  • JESD-609 Code:

    e0

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -1.2 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA169,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    225

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

AD9164BBCA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Route digital and analog signals separately, and use shielding and filtering to minimize noise and EMI.
  • Optimize the clock source, use a high-quality reference clock, and ensure proper PCB layout and routing. Also, adjust the analog and digital supply voltages, and optimize the output termination and filtering.
  • The AD9164BBCA can achieve a maximum data rate of up to 12 GSPS, depending on the specific configuration and application.
  • Use a common clock source and synchronize the devices using the SYNC_IN and SYNC_OUT pins. Ensure that the clock signals are properly buffered and distributed to each device.
  • Power up the device in the following sequence: AVDD, DVDD, and then CLK+. Power down in the reverse sequence. Ensure that the power supplies are stable and well-regulated.
