AD9200ARSZRL - Analog Devices

Description: Analog to Digital Converters - ADC 10-BIT 20 MSPS, 80 mW CMOS ADC

Download AD9200ARSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

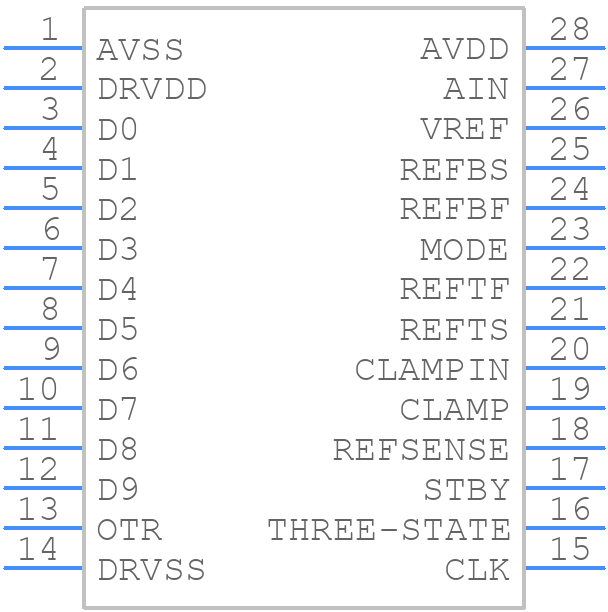

AD9200ARSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9200ARSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)_1
click to zoom
3D Models
AD9200ARSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)_1
click to zoom

AD9200ARSZRL Details

  • Manufacturer Part Number:

    AD9200ARSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.21 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.98 mm

  • Supply Current-Max:

    33.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

AD9200ARSZRL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter and a ferrite bead to filter out high-frequency noise.
  • Optimize the ADC's performance by selecting the correct sampling rate, input range, and gain settings for your application. Use the device's built-in calibration features and adjust the offset and gain to minimize errors. Consider using an external reference voltage and a low-noise clock source.
  • The AD9200ARSZRL has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Operate the device within the recommended temperature range and avoid overheating, which can cause errors and reduce reliability.
  • Use a compatible digital interface standard such as SPI or LVDS to connect the AD9200ARSZRL to a microcontroller or FPGA. Ensure proper signal termination, and consider using a buffer or repeater to extend the signal distance. Pay attention to clock domain crossing and synchronization to avoid data corruption.
  • Use proper shielding, grounding, and filtering to minimize electromagnetic interference. Ensure that the PCB layout and component placement minimize radiation and susceptibility. Consider using a metal shield or a conductive enclosure to contain emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9200ARSZRL Overview

Use the download button to access the AD9200ARSZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD920, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
