AD9208BBPZ-3000 - Analog Devices

AD9208BBPZ-3000 Details

• Manufacturer Part Number:

  AD9208BBPZ-3000

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

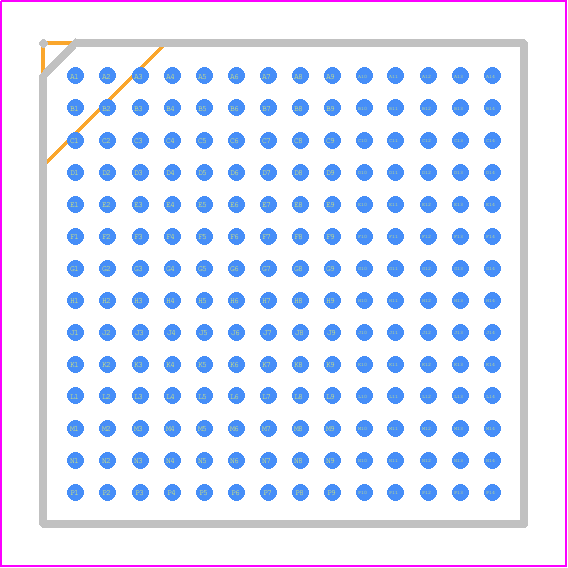

• Package Description:

  BGA-196

• Pin Count:

  196

• Manufacturer Package Code:

  BP-196-4

• Country Of Origin:

  South Korea

• ECCN Code:

  3A001.A.5.A.4

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2017-04-26

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog Input Voltage-Max:

  1.7 V

• Analog Input Voltage-Min:

  -1.7 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PBGA-B196

• JESD-609 Code:

  e1

• Length:

  12 mm

• Linearity Error-Max (EL):

  0.1282%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  4

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  196

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HBGA

• Package Equivalence Code:

  BGA196,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  3000 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.53 mm

• Supply Current-Max:

  765 mA

• Supply Voltage-Nom:

  0.975 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm
