AD9209BBPZ-4G - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit, 4GSPS, JESD204B/C, Quad Analog-to-Digital Converter

Download AD9209BBPZ-4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9209BBPZ-4G - Analog Devices - PCB symbol
click to zoom
PCB Footprints

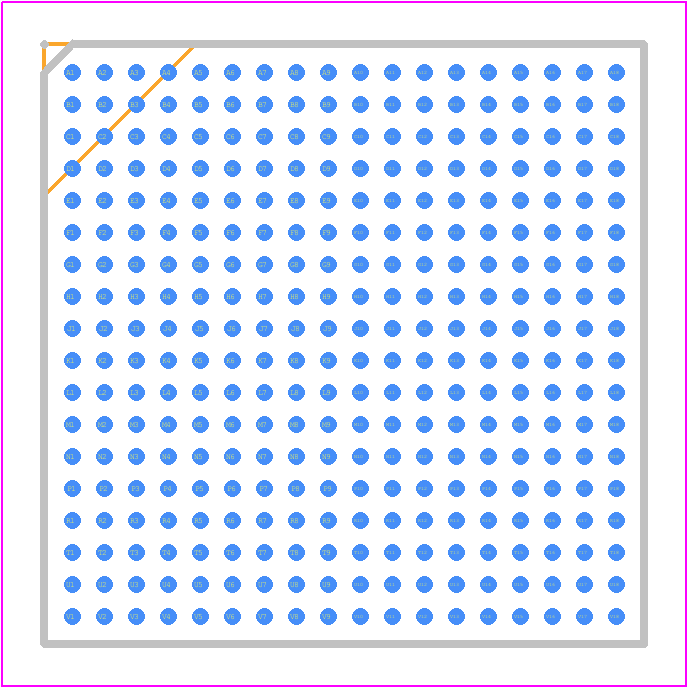

AD9209BBPZ-4G - Analog Devices PCB footprint - BGA - BGA - BP-324-3
click to zoom
3D Models
AD9209BBPZ-4G - Analog Devices - 3D model - BGA - BP-324-3
click to zoom

AD9209BBPZ-4G Details

  • Manufacturer Part Number:

    AD9209BBPZ-4G

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    BP-324-3

  • ECCN Code:

    3A991.c.2

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.4 V

  • Analog Input Voltage-Min:

    -1.4 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.12207%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HFBGA

  • Package Equivalence Code:

    BGA324,18X18,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG, FINE PITCH

  • Sample Rate:

    4000 MHz

  • Seated Height-Max:

    1.72 mm

  • Supply Current-Max:

    20.7 mA

  • Supply Voltage-Nom:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

AD9209BBPZ-4G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9209BBPZ-4G can be found in the AD9209 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference.
  • Optimizing the performance of the AD9209BBPZ-4G requires careful consideration of the analog front-end design, clocking, and digital signal processing. Analog Devices provides application notes and design tools to help optimize performance, such as the AD9209 Evaluation Board and the ADI Sigma-Delta ADC Tool.
  • The maximum sampling rate of the AD9209BBPZ-4G is 4 GSPS, but this can be limited by the analog input bandwidth, clock jitter, and other system-level factors. The actual achievable sampling rate may be lower depending on the specific application and system design.
  • The AD9209BBPZ-4G has a JESD204B interface, which can be connected to an FPGA or ASIC using a compatible interface IP core. Analog Devices provides documentation and design files to facilitate this interface, including the JESD204B IP Core User Guide and the AD9209 JESD204B Interface Design Files.
  • The power consumption of the AD9209BBPZ-4G depends on the operating mode, sampling rate, and other factors. The typical power consumption is around 1.5 W, but this can vary depending on the specific application and system design. The AD9209 datasheet provides detailed power consumption information and guidelines for power supply design.
