AD9218BSTZ-RL105 - Analog Devices

Description: 10-Bit, 40/65/80/105 MSPS 3 V Dual Analog-to-Digital Converter

Download AD9218BSTZ-RL105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

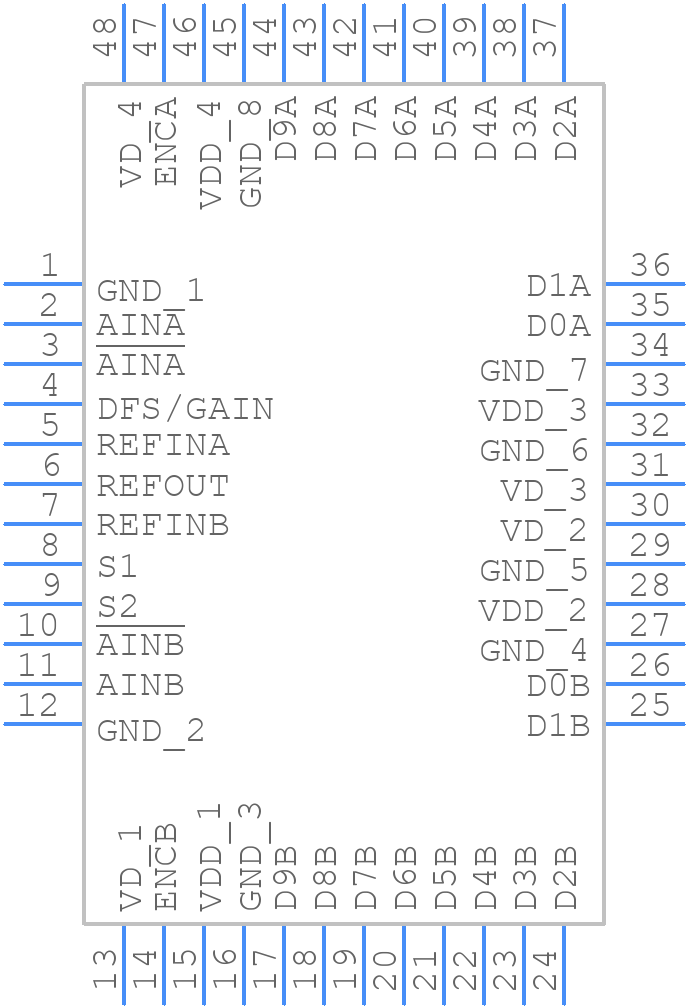

Symbol
AD9218BSTZ-RL105 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9218BSTZ-RL105 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - AD9218BSTZ-RL105
click to zoom
3D Models
AD9218BSTZ-RL105 - Analog Devices - 3D model - Quad Flat Packages - AD9218BSTZ-RL105
click to zoom

AD9218BSTZ-RL105 Details

  • Manufacturer Part Number:

    AD9218BSTZ-RL105

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, LEAD FREE, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1 V

  • Analog Input Voltage-Min:

    -1 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.2637%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    105 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    188 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9218BSTZ-RL105 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9218BSTZ-RL105. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. The device should be placed close to the analog signal sources, and the digital outputs should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The clock input of the AD9218BSTZ-RL105 is a critical component. To optimize it, use a low-jitter clock source, and ensure that the clock signal is properly terminated. The clock input should be driven differentially, and the clock frequency should be within the specified range. Additionally, the clock signal should be free of noise and glitches.
  • The recommended power-up sequence for the AD9218BSTZ-RL105 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock input. This sequence helps to prevent latch-up and ensures proper device operation.
  • The digital output data from the AD9218BSTZ-RL105 is in a binary format. To handle it, use a FIFO or a buffer to store the data, and then transfer it to a processor or an FPGA for further processing. Ensure that the data is properly synchronized with the clock signal, and that the data is not corrupted during transmission.
  • The AD9218BSTZ-RL105 is a high-speed device that generates heat. To manage the thermal dissipation, use a heat sink or a thermal pad on the device, and ensure good airflow around the device. The PCB should be designed to dissipate heat efficiently, and the device should be operated within the specified temperature range.
