AD9220ARSZ-REEL - Analog Devices

Description: 1-Channel Single ADC Pipelined 10Msps 12-bit Parallel 28-Pin SSOP T/R

Download AD9220ARSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

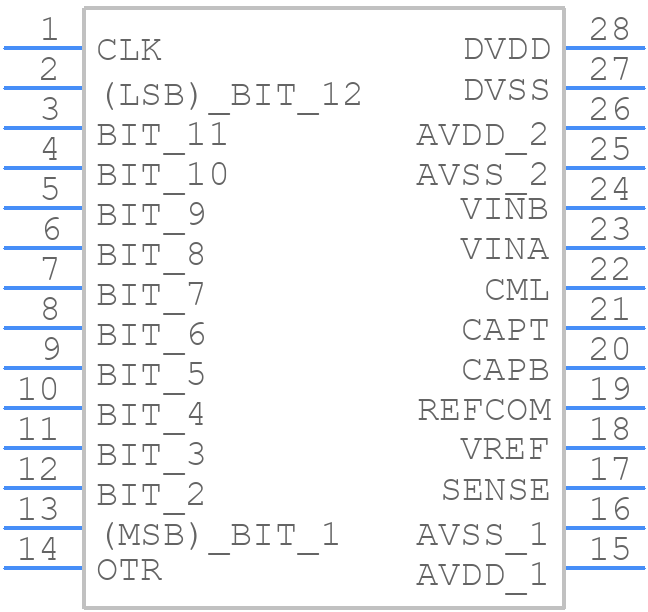

Symbol
AD9220ARSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9220ARSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
AD9220ARSZ-REEL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

AD9220ARSZ-REEL Details

  • Manufacturer Part Number:

    AD9220ARSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.1 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    10 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    58 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

AD9220ARSZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and decouple the power pins with 0.1uF and 10uF capacitors.
  • Use a low-jitter clock source (<100ps) and a 50Ω transmission line to drive the clock input. Terminate the clock line with a 50Ω resistor to match the impedance. Use a clock frequency that is a multiple of the sampling frequency to minimize jitter.
  • Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure that the clock input is stable and valid before applying the analog input signal. Avoid applying the analog input signal before the power supplies are stable.
  • Use a FIFO or a buffer to handle the output data, as the AD9220ARSZ-REEL outputs data in a burst mode. Ensure that the receiving device can handle the data rate and format. Use a CRC or checksum to detect errors and ensure data integrity.
  • Perform a full-scale calibration after power-up and after any changes to the analog input signal. Use the internal calibration mode to adjust the offset and gain of the ADC. Perform a self-test to verify the ADC's performance and accuracy.
