- Part Number AD9221AR
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1032X265-28N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9221AR Details
-
Manufacturer Part Number:
AD9221AR
-
Source Url Status Check Date:
2013-05-01 14:56:29.953
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
MS-013AE, SOIC-28
-
Pin Count:
28
-
Manufacturer Package Code:
RW-28
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD9221AR Frequently Asked Questions (FAQs)
-
A low-jitter, high-frequency clock source is recommended, such as a crystal oscillator or a high-quality clock generator. The clock source should be able to provide a stable clock signal with minimal phase noise and jitter.
-
To optimize the analog input stage, ensure that the input signal is properly terminated, and the input impedance is matched to the source impedance. Also, use a low-pass filter to remove high-frequency noise and ensure that the input signal is within the specified voltage range.
-
Clock jitter can significantly affect the AD9221AR's performance, particularly in terms of SNR and ENOB. High clock jitter can result in reduced SNR and ENOB, while low clock jitter can improve these parameters. It is recommended to use a low-jitter clock source to minimize the impact of clock jitter.
-
To ensure proper synchronization, use a common clock source for all devices in the system, and ensure that the clock signal is properly distributed and buffered. Also, use a synchronization signal, such as a frame sync or a clock enable signal, to synchronize the AD9221AR with other devices.
-
To minimize digital noise and ensure reliable data transmission, use a differential signaling scheme, such as LVDS or CMOS, for the digital output signals. Route the digital output signals away from analog signals and use a ground plane to reduce electromagnetic interference (EMI).
Trust Checks
System Verified
AD9221AR Overview

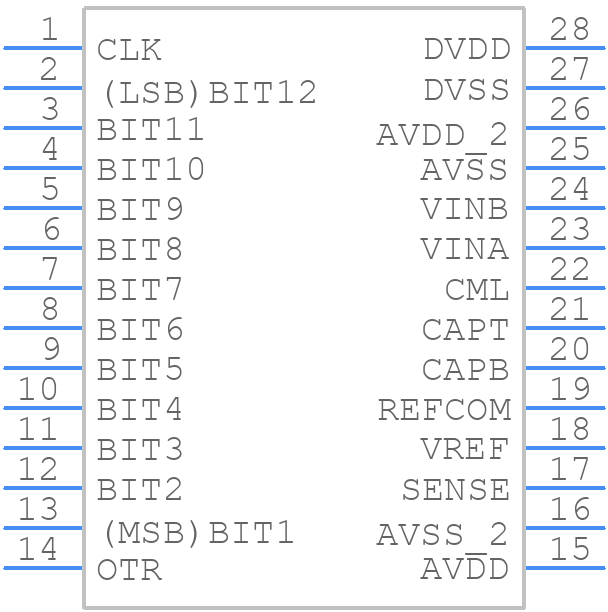

Use the download button to access the AD9221AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD922,
or try a keyword search, such as Analog to Digital Converters
