- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9222ABCPZ-50
- Part Number AD9222ABCPZ-50
- Manufacturer Analog Devices
- Pin Count 65
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead

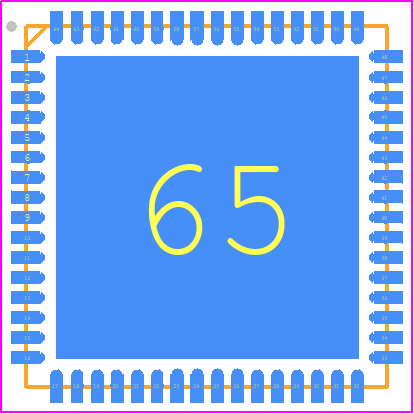

- Footprint Name Quad Flat No-Lead - CP-64-6 (LFCSP)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9222ABCPZ-50 Details
-
Manufacturer Part Number:
AD9222ABCPZ-50
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
QFN
-
Package Description:
9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64
-
Pin Count:
64
-
Manufacturer Package Code:
CP-64-6
-
Country Of Origin:
Singapore
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9222ABCPZ-50 Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD9222ABCPZ-50 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the clock input, use a low-jitter clock source, and ensure the clock signal is properly terminated. The clock signal should be a clean, low-noise signal with a frequency of 10 MHz to 65 MHz. Additionally, the clock input should be decoupled with a 100 nF capacitor to reduce noise.
-
The recommended power-up sequence for the AD9222ABCPZ-50 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to prevent latch-up and ensures proper device operation.
-
The AD9222ABCPZ-50 outputs 12-bit data in a parallel format. The recommended data processing flow involves capturing the output data using a FIFO or a data capture device, followed by data processing and filtering to remove noise and artifacts.
-
The AD9222ABCPZ-50 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermal interface material, and ensure good airflow around the device. Additionally, the device should be operated within the recommended temperature range of -40°C to 85°C.
Trust Checks
Community Provided
System Verified
Community Approved
AD9222ABCPZ-50 Overview
Use the download button to access the AD9222ABCPZ-50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD922,
or try a keyword search, such as Analog to Digital Converters
