AD9225ARSZRL - Analog Devices

Description: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 28-SSOP

Download AD9225ARSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

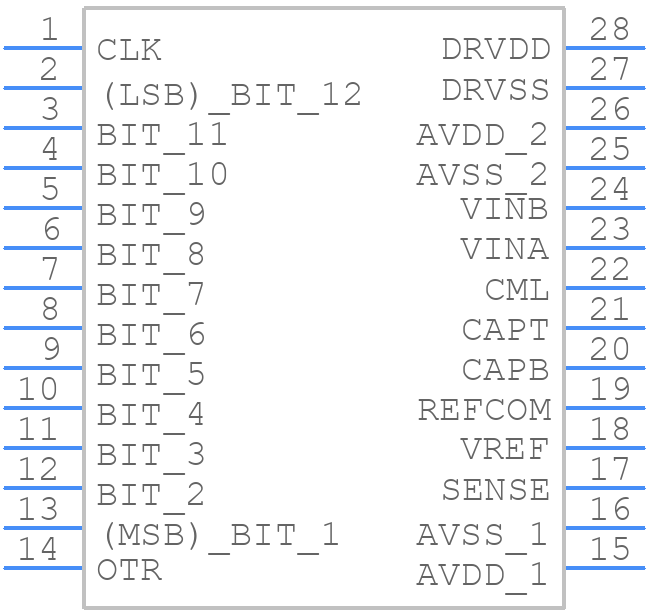

AD9225ARSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9225ARSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28
click to zoom
3D Models
AD9225ARSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28
click to zoom

AD9225ARSZRL Details

  • Manufacturer Part Number:

    AD9225ARSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    72.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9225ARSZRL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures that the internal bias voltage is established before the analog input signal is applied.
  • To optimize the performance of the AD9225, ensure that the analog input signal is properly terminated, use a low-noise power supply, and optimize the analog input signal amplitude to maximize the dynamic range. Additionally, use a high-quality clock source and ensure that the clock signal is properly terminated.
  • The maximum allowable input signal amplitude for the AD9225 is 2Vpp differential, which corresponds to a full-scale input range of 1Vpp differential.
  • The AD9225 can be interfaced with a FPGA or ASIC using a parallel interface. The digital output data is available on the D[11:0] pins, and the output data format can be configured to be either two's complement or offset binary. Ensure that the FPGA or ASIC is configured to match the output data format and clocking requirements of the AD9225.
  • The SYNC pin is used to synchronize the AD9225 with an external clock source. When the SYNC pin is high, the AD9225 is in synchronization mode, and the internal clock is synchronized with the external clock source. When the SYNC pin is low, the AD9225 operates in asynchronous mode.
