AD9226ASTZRL - Analog Devices

Description: Single Channel Single ADC Pipelined 65Msps 12-bit Parallel 48-Pin LQFP T/R

Download AD9226ASTZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

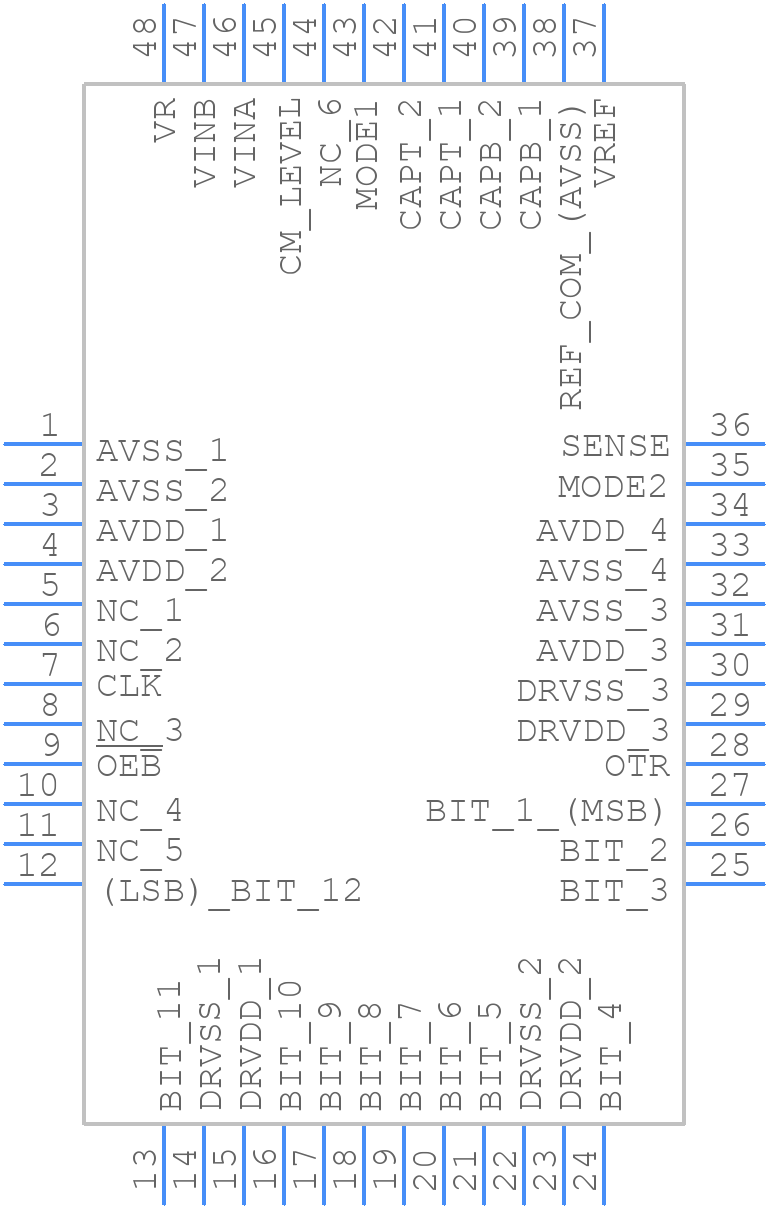

AD9226ASTZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9226ASTZRL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)_2022
click to zoom
3D Models
AD9226ASTZRL - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)_2022
click to zoom

AD9226ASTZRL Details

  • Manufacturer Part Number:

    AD9226ASTZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.0154 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0391%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    90.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9226ASTZRL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9226ASTZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the ADC and the analog signal sources. A 4-layer PCB with a dedicated analog layer and a dedicated digital layer is recommended. Additionally, the use of vias and thermal reliefs can help to reduce noise and improve thermal performance.
  • To optimize the performance of the AD9226ASTZRL in a high-speed data acquisition system, it is recommended to use a high-quality clock source, minimize the jitter on the clock signal, and use a low-noise power supply. Additionally, the use of a high-speed amplifier or buffer can help to improve the signal-to-noise ratio and reduce distortion. It is also important to ensure that the ADC is properly terminated and that the digital output is properly synchronized with the clock signal.
  • The maximum sampling rate that can be achieved with the AD9226ASTZRL is 65 MSPS. However, the actual sampling rate that can be achieved may be limited by the quality of the clock signal, the noise floor of the system, and the performance of the analog signal sources.
  • The AD9226ASTZRL can be interfaced with a FPGA or ASIC using a parallel or serial interface. The parallel interface uses a 16-bit or 14-bit bus to transfer data, while the serial interface uses a serial peripheral interface (SPI) or a JESD204B interface. The specific interface used will depend on the requirements of the system and the capabilities of the FPGA or ASIC.
  • The power consumption of the AD9226ASTZRL is typically around 350 mW at a sampling rate of 65 MSPS. However, the actual power consumption may vary depending on the specific application, the clock frequency, and the operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9226ASTZRL Overview

Use the download button to access the AD9226ASTZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD922, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
