The recommended PCB layout for the AD9235BCPZRL7-40 can be found in the AD9235 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9235 datasheet, which highlights key considerations for signal integrity, power supply decoupling, and thermal management.
To optimize the performance of the AD9235BCPZRL7-40, it's essential to carefully consider the analog input signal chain, including the signal source, amplification, filtering, and impedance matching. Additionally, ensure that the power supply is clean and well-regulated, and that the device is properly decoupled. Analog Devices provides application notes and design tools, such as the AD9235 Evaluation Board and the ADIsimADC simulation tool, to help optimize performance in specific applications.
The AD9235BCPZRL7-40 can operate with clock frequencies up to 640 MHz, but the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It's essential to ensure that the clock signal is clean, stable, and meets the device's jitter requirements to maintain optimal performance.
The AD9235BCPZRL7-40 provides a 12-bit parallel digital output, which can be interfaced with a variety of digital signal processing devices, such as FPGAs or microcontrollers. To handle the digital output data, it's essential to ensure that the receiving device is properly configured to capture the data at the correct clock rate and data format. Analog Devices provides example code and design files for popular digital signal processing platforms to help simplify the integration process.
The power consumption of the AD9235BCPZRL7-40 depends on the specific operating conditions, including the clock frequency, analog input range, and digital output format. The device typically consumes around 350 mW at 640 MHz clock frequency. To reduce power consumption, consider using a lower clock frequency, reducing the analog input range, or using the device's power-down modes. Additionally, ensure that the power supply is efficient and well-regulated to minimize power losses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD9235BCPZRL7-40 Overview

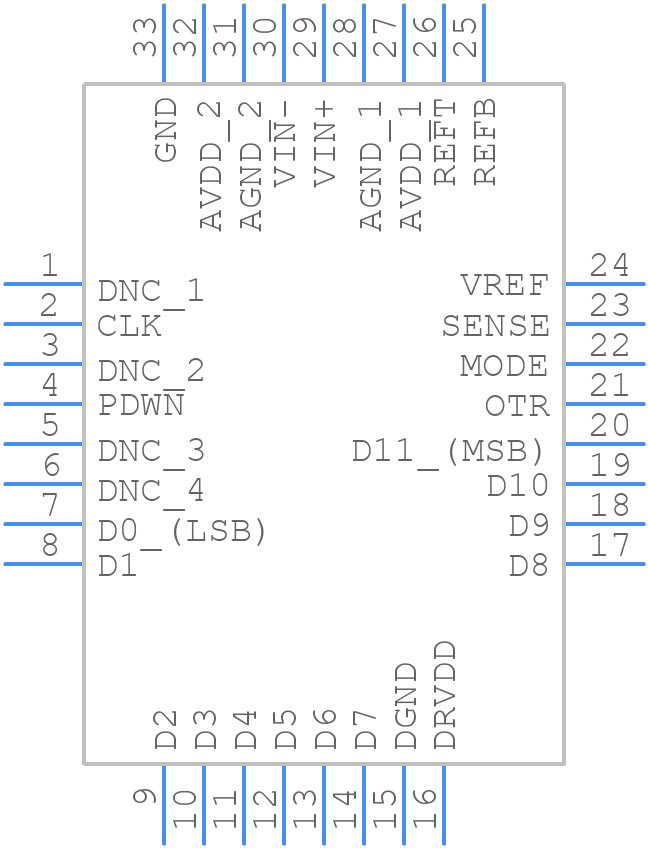

Use the download button to access the AD9235BCPZRL7-40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD923,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
