AD9235BRUZRL7-65 - Analog Devices

Description: 1-Channel Single ADC Pipelined 65Msps 12-bit Parallel 28-Pin TSSOP T/R

Download AD9235BRUZRL7-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

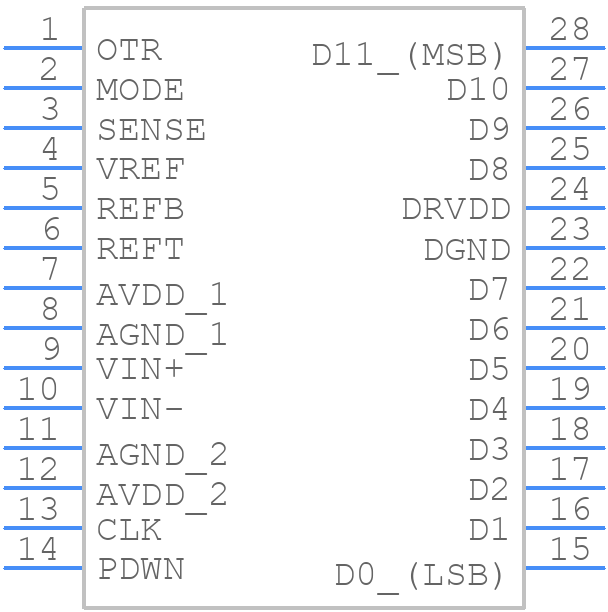

AD9235BRUZRL7-65 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9235BRUZRL7-65 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD9235BRUZRL7-65 - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD9235BRUZRL7-65 Details

  • Manufacturer Part Number:

    AD9235BRUZRL7-65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0317%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD9235BRUZRL7-65 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9235BRUZRL7-65 can be found in the AD9235 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document that provides general guidelines for designing a PCB for the AD9235.
  • To optimize the performance of the AD9235BRUZRL7-65, it is recommended to follow the application notes and guidelines provided by Analog Devices, such as the AD9235 datasheet, user guide, and evaluation board documentation. Additionally, engineers can consult with Analog Devices' technical support team or seek guidance from experienced engineers who have worked with similar applications.
  • The AD9235BRUZRL7-65 has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. Thermal management considerations include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. The AD9235 datasheet provides more detailed information on thermal management.
  • The AD9235BRUZRL7-65 is not specifically designed or qualified for radiation-hardened or high-reliability applications. However, Analog Devices offers other products that are designed and qualified for such applications. Engineers should consult with Analog Devices' technical support team to determine the suitability of the AD9235BRUZRL7-65 or other Analog Devices products for their specific application.
  • The lead time and availability of the AD9235BRUZRL7-65 can vary depending on the region, distributor, and quantity required. Engineers should check with authorized distributors or Analog Devices' website for the latest information on lead time and availability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9235BRUZRL7-65 Overview

Use the download button to access the AD9235BRUZRL7-65 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD923, or try a keyword search, such as Analog to Digital Converters
