AD9236BCPZRL7-80 - Analog Devices

Description: Single Channel Single ADC Pipelined 80Msps 12-bit Parallel 32-Pin LFCSP EP T/R

Download AD9236BCPZRL7-80 Model

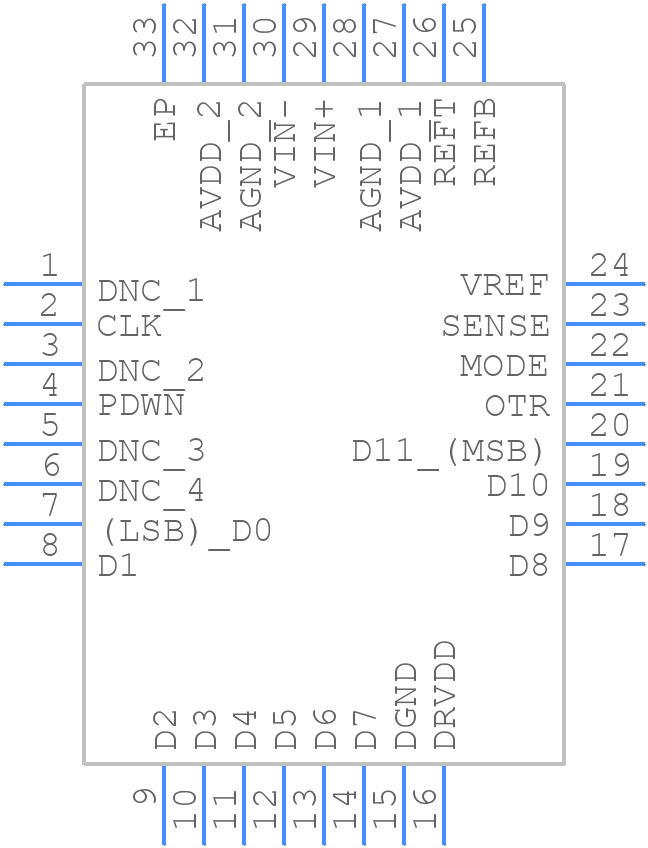

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD9236BCPZRL7-80 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7
click to zoom
3D Models
AD9236BCPZRL7-80 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-32-7
click to zoom

AD9236BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9236BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, LEAD FREE, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    1 V

  • Conversion Time-Max:

    0.01 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0293%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    137 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD9236BCPZRL7-80 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9236BCPZRL7-80 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the analog and digital signals. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to ensure good thermal and electrical performance.
  • To optimize the performance of the AD9236BCPZRL7-80, ensure that the input signal is properly terminated, and the analog supply voltage is well-regulated. Additionally, use a low-noise clock source, and ensure that the clock signal is properly terminated and decoupled. Also, optimize the analog input bandwidth by selecting the appropriate input filter configuration, and ensure that the digital output data is properly synchronized with the clock signal.
  • The maximum clock frequency that can be used with the AD9236BCPZRL7-80 is 80 MSPS, as specified in the datasheet. However, the actual clock frequency used may be limited by the specific application requirements, such as the Nyquist frequency of the input signal, and the desired output data rate.
  • The AD9236BCPZRL7-80 can be interfaced with a FPGA or ASIC using a parallel LVDS or CMOS output interface. The device's output data format can be configured to match the requirements of the FPGA or ASIC, and the output clock signal can be used to synchronize the data transfer. Additionally, the device's output data can be serialized using a serializer or a deserializer, depending on the specific application requirements.
  • The power consumption of the AD9236BCPZRL7-80 is typically around 330 mW at 80 MSPS, with a 1.8V analog supply voltage and a 1.2V digital supply voltage. To minimize power consumption, the device's power-down mode can be used when the device is not in use, and the analog supply voltage can be reduced to 1.5V or lower, depending on the specific application requirements.
