AD9236BRUZ-80 - Analog Devices

Description: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 28-TSSOP

Download AD9236BRUZ-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

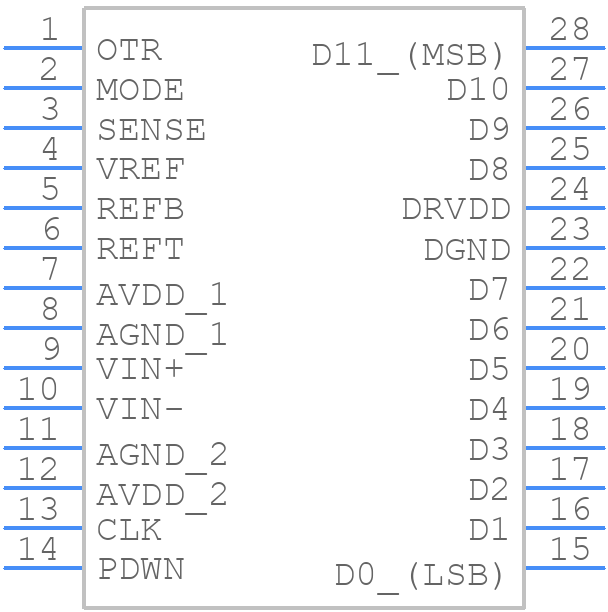

AD9236BRUZ-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9236BRUZ-80 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom
3D Models
AD9236BRUZ-80 - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom

AD9236BRUZ-80 Details

  • Manufacturer Part Number:

    AD9236BRUZ-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    1 V

  • Conversion Time-Max:

    0.01 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0293%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    137 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD9236BRUZ-80 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and away from the digital lines.
  • Use a high-quality clock source with a low jitter specification. Use a clock signal with a frequency that is a multiple of the sampling frequency to minimize jitter. Use a clock buffer or a clock conditioner to clean up the clock signal and reduce jitter.
  • Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure that the analog supply is stable before applying the clock signal. Apply the clock signal only after the analog and digital supplies are stable.
  • Use a FIFO or a buffer to handle the output data from the AD9236BRUZ-80. Use a data processing algorithm that can handle the output data rate and format. Ensure that the data processing system can handle the output data format, which is 12-bit or 14-bit parallel data.
  • Use the internal calibration mode to calibrate the AD9236BRUZ-80. The internal calibration mode adjusts the offset and gain of the ADC to ensure accurate conversion results. Refer to the datasheet for the calibration procedure.
