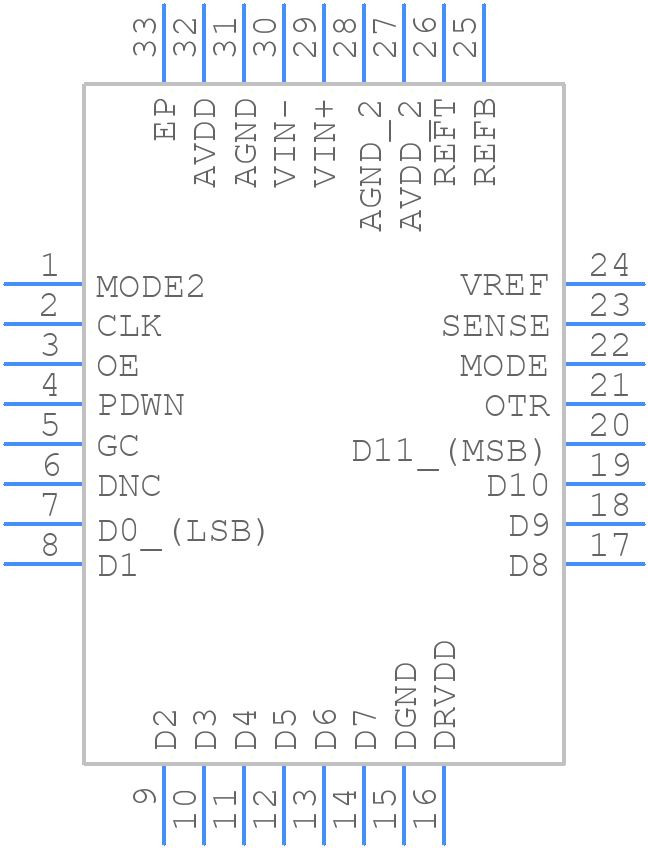

AD9237BCPZ-20 - Analog Devices

AD9237BCPZ-20 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9237BCPZ-20 to minimize noise and ensure optimal performance?
  A good PCB layout for the AD9237BCPZ-20 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides some general guidelines, but Analog Devices also offers a reference design and layout guidelines in their application notes and evaluation boards.
• How do I optimize the clock input to the AD9237BCPZ-20 for best performance?
  To optimize the clock input to the AD9237BCPZ-20, use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. The clock signal should be routed close to the AD9237BCPZ-20 and should not be shared with other devices. Additionally, the clock signal should be terminated with a 50-ohm resistor to match the impedance of the clock input. It's also recommended to use a clock signal with a frequency that is a multiple of the desired sampling frequency to minimize jitter.
• What is the maximum input voltage range for the AD9237BCPZ-20, and how do I handle overvoltage protection?
  The maximum input voltage range for the AD9237BCPZ-20 is ±1.5 V, but it's recommended to limit the input voltage to ±1.2 V to ensure optimal performance. For overvoltage protection, it's recommended to use external clamping diodes or voltage-limiting resistors to prevent the input voltage from exceeding the maximum rating. Additionally, the AD9237BCPZ-20 has an internal overvoltage protection circuit that will limit the input current to prevent damage in case of an overvoltage condition.
• How do I calibrate the AD9237BCPZ-20 for optimal performance, and what are the recommended calibration procedures?
  The AD9237BCPZ-20 has an internal calibration circuit that can be used to optimize its performance. The recommended calibration procedure involves applying a known input signal and adjusting the internal calibration registers to minimize the offset and gain errors. The datasheet provides a detailed calibration procedure, and Analog Devices also offers software tools and evaluation boards to simplify the calibration process.
• What is the power consumption of the AD9237BCPZ-20, and how do I optimize it for low-power applications?
  The power consumption of the AD9237BCPZ-20 depends on the sampling frequency and the operating mode. At a sampling frequency of 20 MSPS, the typical power consumption is around 120 mW. To optimize the power consumption for low-power applications, it's recommended to use the power-down mode, reduce the sampling frequency, and use a lower supply voltage. Additionally, the AD9237BCPZ-20 has a sleep mode that can be used to reduce the power consumption to around 10 mW.
